ชื่อรุ่น :

ANSI PHS 80 - 1CXX

แบรนด์

SKF

รายละเอียด :

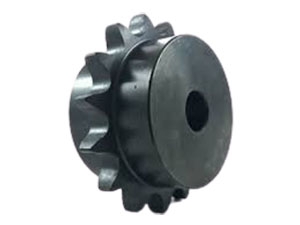

เฟื่องโซ่ชั้นเดียว Pitch = 1" มีดุมยื่น 2 ข้าง
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHS 80-1C70
Model description

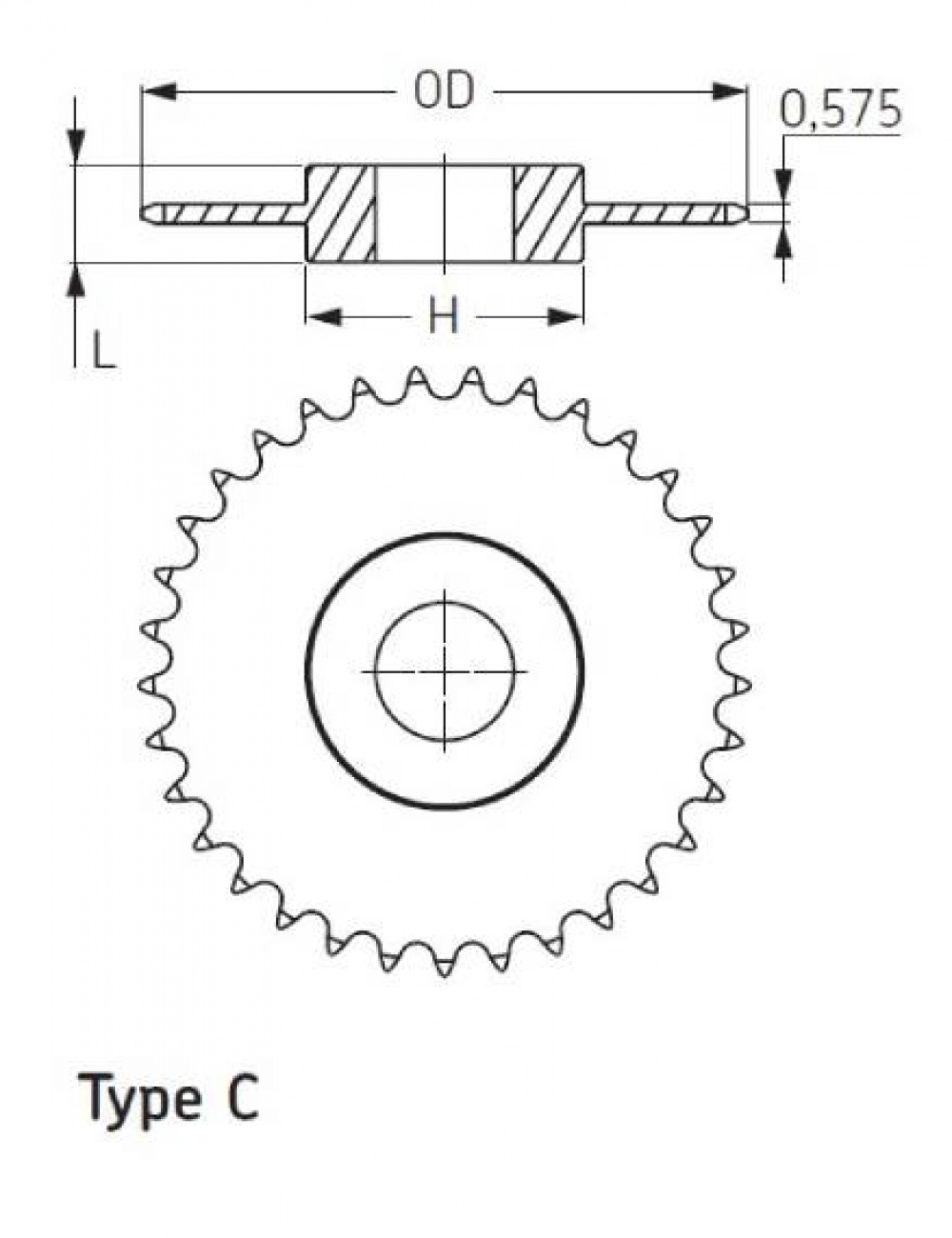

No.Teeth = 70 DIMENSIONS :Outside diameter = 22.87 in. , Type = C , Bore min. = 1 1/2 in. , Bore max. = 4 1/4 in. ,H = 6 1/4 in. , L = 3 1/2 in.
Price
Model
PHS 80-1C72
Model description
No.Teeth = 72 DIMENSIONS :Outside diameter = 23.50 in. , Type = C , Bore min. = 1 1/2 in. , Bore max. = 4 1/4 in. ,H = 6 1/4 in. , L = 3 1/2 in.
Price
Model
PHS 80-1C76
Model description
No.Teeth = 76 DIMENSIONS :Outside diameter = 24.78 in. , Type = C , Bore min. =1 1/2 in. , Bore max. = 4 1/4 in. ,H = 6 1/4 in. , L = 3 1/2 in.
Price
Model
PHS 80-1C80
Model description
No.Teeth = 80 DIMENSIONS :Outside diameter = 26.05 in. , Type = C , Bore min. = 1 1/2 in. , Bore max. = 4 1/4 in. ,H = 6 1/4 in. , L = 3 1/2 in.
Price
Model
PHS 80-1C84
Model description
No.Teeth = 84 DIMENSIONS :Outside diameter = 27.33 in. , Type = C , Bore min. = 1 1/2 in. , Bore max. = 4 1/4 in. ,H = 6 1/4 in. , L = 3 1/2 in.
Price
Model
PHS 80-1C90
Model description
No.Teeth = 90 DIMENSIONS :Outside diameter = 29.24 in. , Type = C , Bore min. = 1 1/2 in. , Bore max. = 4 1/4 in. ,H =6 1/4 in. , L = 3 1/2 in.
Price
Model
PHS 80-1C96
Model description
No.Teeth = 96 DIMENSIONS :Outside diameter = 31.15 in. , Type = C , Bore min. = 1 1/2 in. , Bore max. = 4 1/4 in. ,H = 6 1/4 in. , L = 1/2 in.
Price
Model
PHS 80-1C112
Model description
No.Teeth = 112 DIMENSIONS :Outside diameter = 36.24 in. , Type = C , Bore min. = 1 1/2 in. , Bore max. = 4 1/4 in. ,H = 6 1/4 in. , L = 1/2 in.
Price
