PRODUCT
![]()
ชื่อรุ่น :

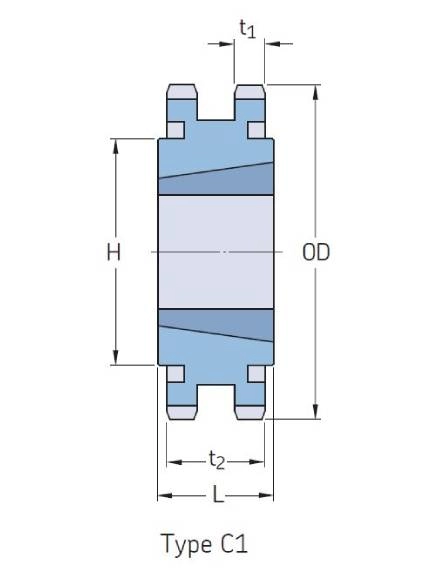

ANSI PHS 35-1AXX
แบรนด์
SKF
รายละเอียด :
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
No.Teeth = 15
DIMENSIONS :Outside diameter = 1.99 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 16
DIMENSIONS :Outside diameter = 2.11 inch , Type = A , Bore Stock =1/2 inch
No.Teeth = 17
DIMENSIONS :Outside diameter = 2.23 inch , Type = A , Bore Stock =1/2 inch
No.Teeth = 18
DIMENSIONS :Outside diameter = 2.35 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 19
DIMENSIONS :Outside diameter = 2.47 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 20
DIMENSIONS :Outside diameter = 2.59 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 21
DIMENSIONS :Outside diameter = 2.71 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 22
DIMENSIONS :Outside diameter = 2.83 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 23
DIMENSIONS :Outside diameter = 2.95 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 24
DIMENSIONS :Outside diameter = 3.07 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 25
DIMENSIONS :Outside diameter = 3.19 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 26
DIMENSIONS :Outside diameter = 3.31 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 27
DIMENSIONS :Outside diameter = 3.43 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 28
DIMENSIONS :Outside diameter = 3.55 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 30
DIMENSIONS :Outside diameter = 3.79 inch , Type = A , Bore Stock = 1/2 inch
No.Teeth = 32
DIMENSIONS :Outside diameter = 4.03 inch , Type = A , Bore Stock = 5/8 inch
No.Teeth = 35
DIMENSIONS :Outside diameter = 4.39 inch , Type = A , Bore Stock = 5/8 inch
No.Teeth = 36
DIMENSIONS :Outside diameter = 4.51 inch , Type = A , Bore Stock = 5/8 inch
No.Teeth = 40
DIMENSIONS :Outside diameter = 4.99 inch , Type = A , Bore Stock = 19/32 inch
No.Teeth = 42
DIMENSIONS :Outside diameter = 5.23 inch , Type = A , Bore Stock =19/32 inch
No.Teeth = 45
DIMENSIONS :Outside diameter = 5.59 inch , Type = A , Bore Stock = 19/32 inch
No.Teeth = 48
DIMENSIONS :Outside diameter = 5.95 inch , Type = A , Bore Stock = 19/32 inch
No.Teeth = 54
DIMENSIONS :Outside diameter = 6.66 inch , Type = A , Bore Stock =19/32 inch
No.Teeth = 60
DIMENSIONS :Outside diameter = 7.38 inch , Type = A , Bore Stock = 23/32 inch
No.Teeth =70
DIMENSIONS :Outside diameter = 8.58 inch , Type = A , Bore Stock = 23/32 inch
No.Teeth = 72
DIMENSIONS :Outside diameter = 8.81 inch , Type = A , Bore Stock = 23/32 inch
No.Teeth = 80
DIMENSIONS :Outside diameter = 9.77 inch , Type = A , Bore Stock = 23/32 inch
No.Teeth = 84
DIMENSIONS :Outside diameter = 10.25 inch , Type = A , Bore Stock = 23/32 inch
No.Teeth = 96
DIMENSIONS :Outside diameter = 11.68 inch , Type = A , Bore Stock = 23/32 inch
No.Teeth = 112
DIMENSIONS :Outside diameter = 13.59 inch , Type = A , Bore Stock = 23/32 inch
