PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 40 - 1DSAXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่สองชั้น Pitch = 1/2" สำหรับใส่โซ่เดี่ยว
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 40 - 1DSA15
Model description
No.Teeth = 15

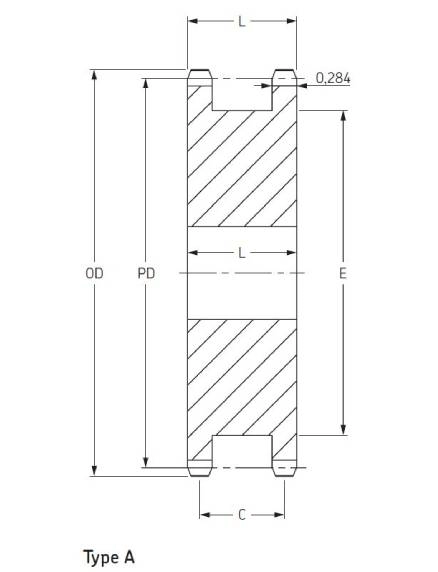

DIMENSIONS : Outside diameter = 2.65 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 1/4 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 1 13/16 in.
Price
Model
PHS 40 - 1DSA16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 2.81 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 1/4 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 in.
Price
Model
PHS 40 - 1DSA17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 2.98 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/16 inch ,L = 1 5/16 in. , C = 1 1/8 in. , E = 2 1/8 in.
Price
Model
PHS 40 - 1DSA18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 3.14 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 1/2 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 5/16 in.
Price
Model
PHS 40 - 1DSA19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 3.30 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 11/16 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 1/2 in.
Price
Model
PHS 40 - 1DSA20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 3.46 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 3/4 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 5/8 in.
Price
Model
PHS 40 - 1DSA21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 3.62 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 3/4 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 25/32 in.
Price
Model
PHS 40 - 1DSA22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 3.78 inch , Type = A , Bore min = 5/8 inch , Bore max =1 13/16 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 15/16 in.
Price
Model
PHS 40 - 1DSA23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 3.94 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 1/16 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 3/32 in.
Price
Model
PHS 40 - 1DSA24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 4.10 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 1/4 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 17/64 in.
Price
Model
PHS 40 - 1DSA25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 4.26 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 1/4 inch ,L = 1 13/32 in. , C = 1 1/8 in. , E = 2 7/16 in.
Price
