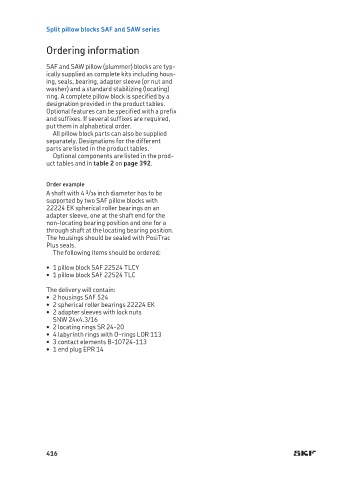

Split pillow blocks SAF and SAW series

Ordering information

SAF and SAW pillow (plummer) blocks are typ-
ically supplied as complete kits including hous-
ing, seals, bearing, adapter sleeve (or nut and
washer) and a standard stabilizing (locating)
ring. A complete pillow block is specified by a
designation provided in the product tables.
Optional features can be specified with a prefix
and suffixes. If several suffixes are required,
put them in alphabetical order.
All pillow block parts can also be supplied
separately. Designations for the different
parts are listed in the product tables.
Optional components are listed in the prod-
uct tables and in table 2 on page 392.

Order example
A shaft with 4 3 /16 inch diameter has to be
supported by two SAF pillow blocks with
22224 EK spherical roller bearings on an
adapter sleeve, one at the shaft end for the
non-locating bearing position and one for a
through shaft at the locating bearing position.
The housings should be sealed with PosiTrac
Plus seals.
The following items should be ordered:

• 1 pillow block SAF 22524 TLCY
• 1 pillow block SAF 22524 TLC
The delivery will contain:
• 2 housings SAF 524
• 2 spherical roller bearings 22224 EK
• 2 adapter sleeves with lock nuts
SNW 24x4.3/16
• 2 locating rings SR 24-20
• 4 labyrinth rings with O-rings LOR 113
• 3 contact elements B-10724-113
• 1 end plug EPR 14
