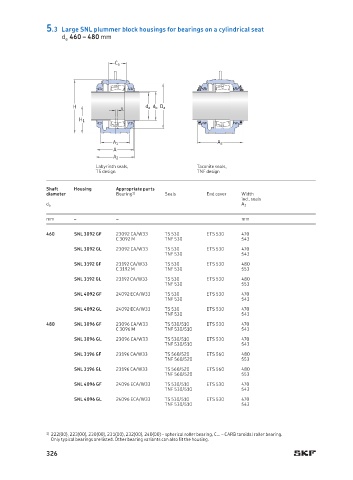

5.3 Large SNL plummer block housings for bearings on a cylindrical seat
d a 460 – 480 mm

C a

H s d a d b D a
H 1

A 1 A 2
A
A 2
Labyrinth seals, Taconite seals,
TS design TNF design

Shaft Housing Appropriate parts
diameter Bearing 1) Seals End cover Width
incl. seals
d a A 2
mm – – mm
460 SNL 3092 GF 23092 CA/W33 TS 530 ETS 530 470
C 3092 M TNF 530 543
SNL 3092 GL 23092 CA/W33 TS 530 ETS 530 470
TNF 530 543
SNL 3192 GF 23192 CA/W33 TS 530 ETS 530 480
C 3192 M TNF 530 553
SNL 3192 GL 23192 CA/W33 TS 530 ETS 530 480
TNF 530 553
SNL 4092 GF 24092 ECA/W33 TS 530 ETS 530 470
TNF 530 543
SNL 4092 GL 24092 ECA/W33 TS 530 ETS 530 470
TNF 530 543
480 SNL 3096 GF 23096 CA/W33 TS 530/510 ETS 530 470
C 3096 M TNF 530/510 543
SNL 3096 GL 23096 CA/W33 TS 530/510 ETS 530 470
TNF 530/510 543
SNL 3196 GF 23196 CA/W33 TS 560/520 ETS 560 480
TNF 560/520 553
SNL 3196 GL 23196 CA/W33 TS 560/520 ETS 560 480
TNF 560/520 553
SNL 4096 GF 24096 ECA/W33 TS 530/510 ETS 530 470
TNF 530/510 543
SNL 4096 GL 24096 ECA/W33 TS 530/510 ETS 530 470
TNF 530/510 543

1) 222(00), 223(00), 230(00), 231(00), 232(00), 240(00) – spherical roller bearing, C… – CARB toroidal roller bearing.
Only typical bearings are listed. Other bearing variants can also fit the housing.
