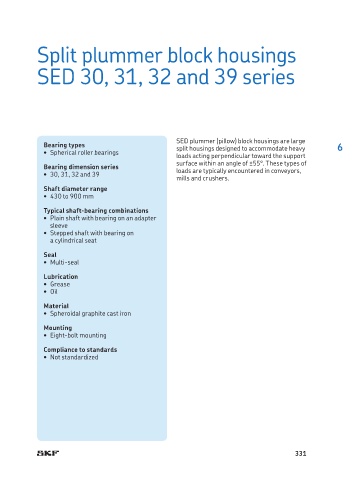

Split plummer block housings

SED 30, 31, 32 and 39 series

SED plummer (pillow) block housings are large
Bearing types split housings designed to accommodate heavy 6
• Spherical roller bearings
loads acting perpendicular toward the support
surface within an angle of ±55°. These types of
Bearing dimension series loads are typically encountered in conveyors,
• 30, 31, 32 and 39
mills and crushers.
Shaft diameter range
• 430 to 900 mm

Typical shaft-bearing combinations
• Plain shaft with bearing on an adapter
sleeve
• Stepped shaft with bearing on
a cylindrical seat

Seal
• Multi-seal
Lubrication
• Grease
• Oil

Material
• Spheroidal graphite cast iron
Mounting
• Eight-bolt mounting
Compliance to standards
• Not standardized
