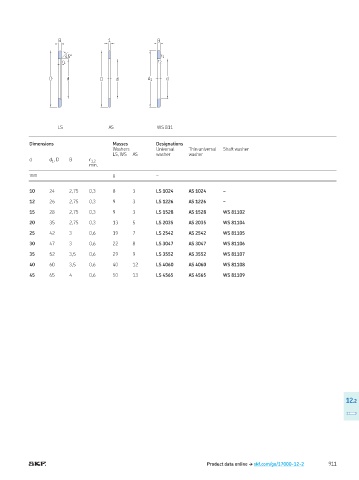

B 1 B

45° r 1
r 2
r 1

D d D d d 1 d

LS AS WS 811

Dimensions Masses Designations
Washers Universal Thin universal Shaft washer
LS, WS AS washer washer
d d , D B r 1,2
1
min.
mm g –

10 24 2,75 0,3 8 3 LS 1024 AS 1024 –

12 26 2,75 0,3 9 3 LS 1226 AS 1226 –

15 28 2,75 0,3 9 3 LS 1528 AS 1528 WS 81102

20 35 2,75 0,3 13 5 LS 2035 AS 2035 WS 81104

25 42 3 0,6 19 7 LS 2542 AS 2542 WS 81105

30 47 3 0,6 22 8 LS 3047 AS 3047 WS 81106

35 52 3,5 0,6 29 9 LS 3552 AS 3552 WS 81107

40 60 3,5 0,6 40 12 LS 4060 AS 4060 WS 81108

45 65 4 0,6 50 13 LS 4565 AS 4565 WS 81109

12.2

Product data online † skf.com/go/17000-12-2 911
