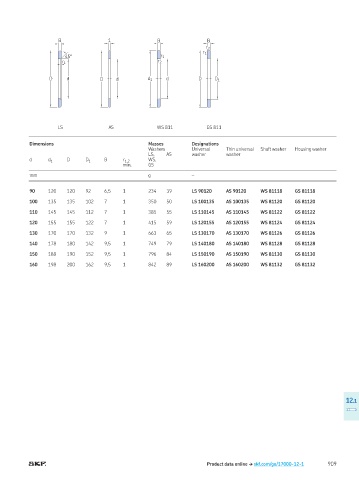

Page 911 - Rollingbearings

B 1 B B
r 2
r 1
45° r 1
r 2
r 1
D d D d d 1 d D D 1

LS AS WS 811 GS 811

Dimensions Masses Designations
Washers Universal Thin universal Shaft washer Housing washer
LS, AS washer washer
d d 1 D D 1 B r 1,2 WS,
min GS
mm g –

90 120 120 92 6,5 1 234 39 LS 90120 AS 90120 WS 81118 GS 81118

100 135 135 102 7 1 350 50 LS 100135 AS 100135 WS 81120 GS 81120

110 145 145 112 7 1 385 55 LS 110145 AS 110145 WS 81122 GS 81122

120 155 155 122 7 1 415 59 LS 120155 AS 120155 WS 81124 GS 81124

130 170 170 132 9 1 663 65 LS 130170 AS 130170 WS 81126 GS 81126

140 178 180 142 9,5 1 749 79 LS 140180 AS 140180 WS 81128 GS 81128

150 188 190 152 9,5 1 796 84 LS 150190 AS 150190 WS 81130 GS 81130

160 198 200 162 9,5 1 842 89 LS 160200 AS 160200 WS 81132 GS 81132
