Spherical roller thrust bearings

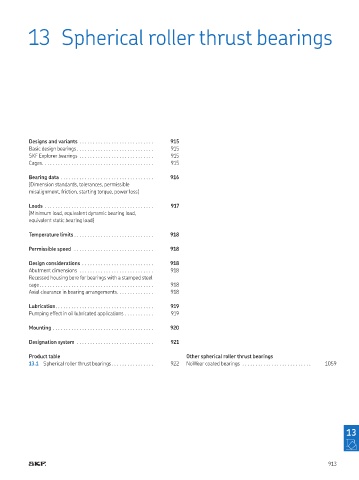

13 Spherical roller thrust bearings

Designs and variants 915
Basic design bearings 915
SKF Explorer bearings 915
Cages 915

Bearing data 916
(Dimension standards, tolerances, permissible
misalignment, friction, starting torque, power loss)

Loads 917
(Minimum load, equivalent dynamic bearing load,
equivalent static bearing load)

Temperature limits 918

Permissible speed 918

Design considerations 918
Abutment dimensions 918
Recessed housing bore for bearings with a stamped steel
cage 918
Axial clearance in bearing arrangements 918

Lubrication 919
Pumping effect in oil lubricated applications 919

Mounting 920

Designation system 921

Product table Other spherical roller thrust bearings
13.1 Spherical roller thrust bearings 922 NoWear coated bearings 1059

13

913
