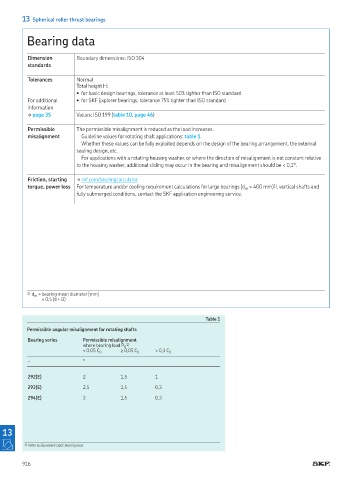

13 Spherical roller thrust bearings

Bearing data

Dimension Boundary dimensions: ISO 104
standards

Tolerances Normal
Total height H:
• for basic design bearings, tolerance at least 50% tighter than ISO standard
For additional • for SKF Explorer bearings, tolerance 75% tighter than ISO standard
information
† page 35 Values: ISO 199 (table 10, page 46)

Permissible The permissible misalignment is reduced as the load increases.
misalignment Guideline values for rotating shaft applications: table 1.
Whether these values can be fully exploited depends on the design of the bearing arrangement, the external
sealing design, etc.
For applications with a rotating housing washer, or where the direction of misalignment is not constant relative
to the housing washer, additional sliding may occur in the bearing and misalignment should be < 0,1°.

Friction, starting † skf.com/bearingcalculator
torque, power loss For temperature and/or cooling requirement calculations for large bearings (d > 400 mm) 1) , vertical shafts and
m
fully submerged conditions, contact the SKF application engineering service.

1) d m = bearing mean diameter [mm]
= 0,5 (d + D)

Table 1
Permissible angular misalignment for rotating shafts
Bearing series Permissible misalignment
1)
where bearing load P 0
< 0,05 C 0 ≥ 0,05 C 0 > 0,3 C 0
– °

292(E) 2 1,5 1

293(E) 2,5 1,5 0,3
294(E) 3 1,5 0,3

13

1) Refer to Equivalent static bearing load.
