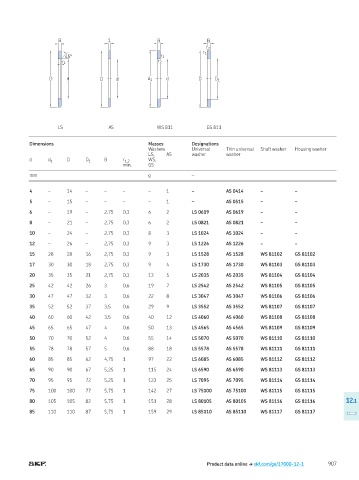

B 1 B B
r 2
r 1
45° r 1
r 2
r 1
D d D d d 1 d D D 1

LS AS WS 811 GS 811

Dimensions Masses Designations
Washers Universal Thin universal Shaft washer Housing washer
LS, AS washer washer
d d 1 D D 1 B r 1,2 WS,
min GS
mm g –

4 – 14 – – – – 1 – AS 0414 – –

5 – 15 – – – – 1 – AS 0515 – –

6 – 19 – 2,75 0,3 6 2 LS 0619 AS 0619 – –

8 – 21 – 2,75 0,3 6 2 LS 0821 AS 0821 – –

10 – 24 – 2,75 0,3 8 3 LS 1024 AS 1024 – –

12 – 26 – 2,75 0,3 9 3 LS 1226 AS 1226 – –

15 28 28 16 2,75 0,3 9 3 LS 1528 AS 1528 WS 81102 GS 81102

17 30 30 18 2,75 0,3 9 4 LS 1730 AS 1730 WS 81103 GS 81103

20 35 35 21 2,75 0,3 13 5 LS 2035 AS 2035 WS 81104 GS 81104

25 42 42 26 3 0,6 19 7 LS 2542 AS 2542 WS 81105 GS 81105

30 47 47 32 3 0,6 22 8 LS 3047 AS 3047 WS 81106 GS 81106

35 52 52 37 3,5 0,6 29 9 LS 3552 AS 3552 WS 81107 GS 81107

40 60 60 42 3,5 0,6 40 12 LS 4060 AS 4060 WS 81108 GS 81108

45 65 65 47 4 0,6 50 13 LS 4565 AS 4565 WS 81109 GS 81109

50 70 70 52 4 0,6 55 14 LS 5070 AS 5070 WS 81110 GS 81110

55 78 78 57 5 0,6 88 18 LS 5578 AS 5578 WS 81111 GS 81111

60 85 85 62 4,75 1 97 22 LS 6085 AS 6085 WS 81112 GS 81112

65 90 90 67 5,25 1 115 24 LS 6590 AS 6590 WS 81113 GS 81113

70 95 95 72 5,25 1 123 25 LS 7095 AS 7095 WS 81114 GS 81114

75 100 100 77 5,75 1 142 27 LS 75100 AS 75100 WS 81115 GS 81115

80 105 105 82 5,75 1 151 28 LS 80105 AS 80105 WS 81116 GS 81116 12.1

85 110 110 87 5,75 1 159 29 LS 85110 AS 85110 WS 81117 GS 81117

Product data online † skf.com/go/17000-12-1 907
