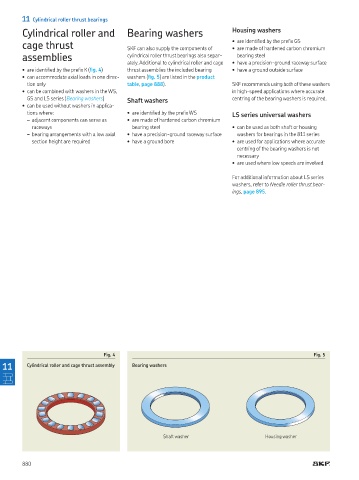

11 Cylindrical roller thrust bearings
Cylindrical roller and Bearing washers Housing washers
cage thrust SKF can also supply the components of • are identiied by the preix GS
• are made of hardened carbon chromium
assemblies cylindrical roller thrust bearings also separ­ bearing steel
ately Additional to cylindrical roller and cage • have a precision-ground raceway surface
• are identiied by the preix K (ig. 4) thrust assemblies the included bearing • have a ground outside surface
• can accommodate axial loads in one direc- washers (ig. 5) are listed in the product
tion only table, page 888) SKF recommends using both of these washers
• can be combined with washers in the WS, in high-speed applications where accurate
GS and LS series (Bearing washers) Shaft washers centring of the bearing washers is required
• can be used without washers in applica-
tions where: • are identiied by the preix WS LS series universal washers
– adjacent components can serve as • are made of hardened carbon chromium
raceways bearing steel • can be used as both shaft or housing
– bearing arrangements with a low axial • have a precision-ground raceway surface washers for bearings in the 811 series
section height are required • have a ground bore • are used for applications where accurate
centring of the bearing washers is not
necessary
• are used where low speeds are involved

For additional information about LS series
washers, refer to Needle roller thrust bear-
ings, page 895

Fig. 4 Fig. 5
11 Cylindrical roller and cage thrust assembly Bearing washers

Shaft washer Housing washer

880
