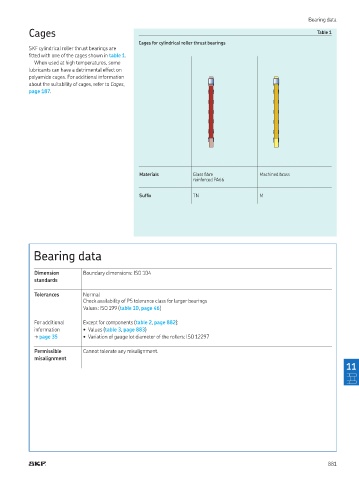

Page 883 - Rollingbearings

Bearing data
Cages Table 1
Cages for cylindrical roller thrust bearings
SKF cylindrical roller thrust bearings are
itted with one of the cages shown in table 1
When used at high temperatures, some
lubricants can have a detrimental effect on
polyamide cages For additional information
about the suitability of cages, refer to Cages,
page 187

Materials Glass ibre Machined brass
reinforced PA66

Sufix TN M

Bearing data

Dimension Boundary dimensions: ISO 104
standards

Tolerances Normal
Check availability of P5 tolerance class for larger bearings
Values: ISO 199 (table 10, page 46)

For additional Except for components (table 2, page 882):
information • Values (table 3, page 883)
† page 35 • Variation of gauge lot diameter of the rollers: ISO 12297

Permissible Cannot tolerate any misalignment
misalignment
