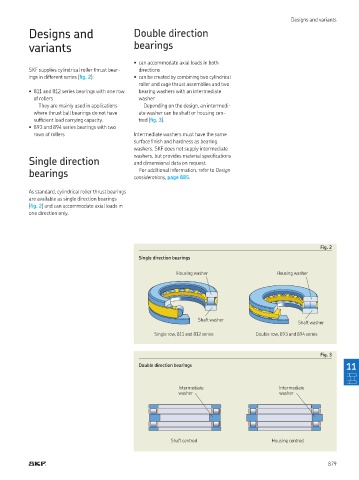

Page 881 - Rollingbearings

Designs and variants
Designs and Double direction

variants bearings

• can accommodate axial loads in both
SKF supplies cylindrical roller thrust bear- directions
ings in different series (ig. 2): • can be created by combining two cylindrical
roller and cage thrust assemblies and two
• 811 and 812 series bearings with one row bearing washers with an intermediate
of rollers washer
They are mainly used in applications Depending on the design, an intermedi-
where thrust ball bearings do not have ate washer can be shaft or housing cen-
suficient load carrying capacity tred (ig. 3)
• 893 and 894 series bearings with two
rows of rollers Intermediate washers must have the same
surface inish and hardness as bearing
washers SKF does not supply intermediate
washers, but provides material speciications
Single direction and dimensional data on request
For additional information, refer to Design
bearings considerations, page 885

As standard, cylindrical roller thrust bearings
are available as single direction bearings
(ig. 2) and can accommodate axial loads in
one direction only

Fig. 2
Single direction bearings

Housing washer Housing washer

Shaft washer
Shaft washer
Single row, 811 and 812 series Double row, 893 and 894 series

Fig. 3
Double direction bearings 11

Intermediate Intermediate
washer washer

Shaft centred Housing centred
