11 Cylindrical roller thrust bearings

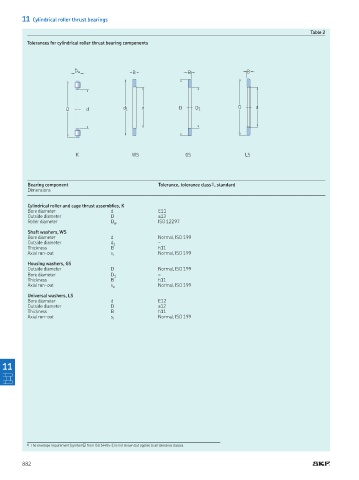

Table 2
Tolerances for cylindrical roller thrust bearing components

D w B B B

D d d 1 d D D 1 D d

K WS GS LS

Bearing component Tolerance, tolerance class 1) , standard
Dimensions

Cylindrical roller and cage thrust assemblies, K
Bore diameter d E11
Outside diameter D a13
Roller diameter D w ISO 12297

Shaft washers, WS
Bore diameter d Normal, ISO 199
Outside diameter d 1 –
Thickness B h11
Axial run-out s i Normal, ISO 199
Housing washers, GS
Outside diameter D Normal, ISO 199
Bore diameter D 1 –
Thickness B h11
Axial run-out s e Normal, ISO 199

Universal washers, LS
Bore diameter d E12
Outside diameter D a12
Thickness B h11
Axial run-out s i Normal, ISO 199

11

1) The envelope requirement (symbol � from ISO 14405-1) is not shown but applies to all tolerance classes
