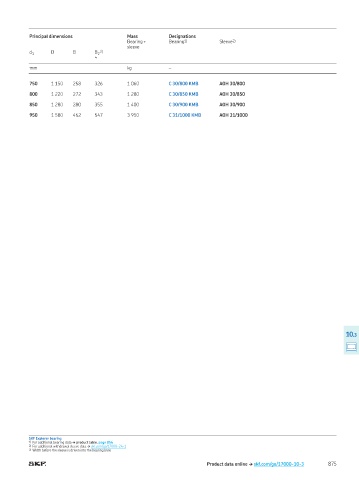

Principal dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B B 3)
2
≈
mm kg –
750 1 150 258 326 1 060 C 30/800 KMB AOH 30/800
800 1 220 272 343 1 280 C 30/850 KMB AOH 30/850
850 1 280 280 355 1 400 C 30/900 KMB AOH 30/900
950 1 580 462 547 3 950 C 31/1000 KMB AOH 31/1000
10.3
SKF Explorer bearing
1) For additional bearing data † product table, page 856
2) For additional withdrawal sleeve data † skf.com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore
Product data online † skf.com/go/17000-10-3 875
