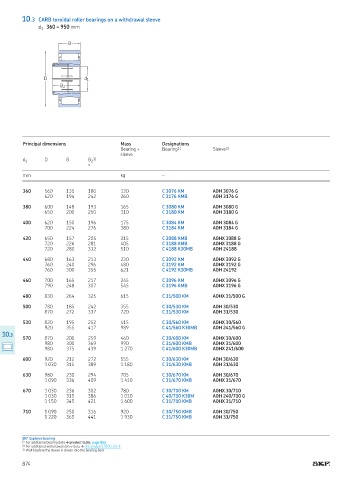

10.3 CARB toroidal roller bearings on a withdrawal sleeve
d 360 – 950 mm
1

B

D d 1
B 2

Principal dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B B 3)
2
≈
mm kg –

360 560 135 180 130 C 3076 KM AOH 3076 G
620 194 242 260 C 3176 KMB AOH 3176 G

380 600 148 193 165 C 3080 KM AOH 3080 G
650 200 250 310 C 3180 KM AOH 3180 G

400 620 150 196 175 C 3084 KM AOH 3084 G
700 224 276 380 C 3184 KM AOH 3184 G

420 650 157 205 215 C 3088 KMB AOHX 3088 G
720 226 281 405 C 3188 KMB AOHX 3188 G
720 280 332 510 C 4188 K30MB AOH 24188

440 680 163 213 230 C 3092 KM AOHX 3092 G
760 240 296 480 C 3192 KM AOHX 3192 G
760 300 355 621 C 4192 K30MB AOH 24192

460 700 165 217 245 C 3096 KM AOHX 3096 G
790 248 307 545 C 3196 KMB AOHX 3196 G

480 830 264 325 615 C 31/500 KM AOHX 31/500 G

500 780 185 242 355 C 30/530 KM AOH 30/530
870 272 337 720 C 31/530 KM AOH 31/530

530 820 195 252 415 C 30/560 KM AOHX 30/560
920 355 417 989 C 41/560 K30MB AOH 241/560 G

10.3
570 870 200 259 460 C 30/600 KM AOHX 30/600
980 300 369 990 C 31/600 KMB AOHX 31/600
980 375 439 1 270 C 41/600 K30MB AOHX 241/600

600 920 212 272 555 C 30/630 KM AOH 30/630
1 030 315 389 1 180 C 31/630 KMB AOH 31/630

630 980 230 294 705 C 30/670 KM AOH 30/670
1 090 336 409 1 410 C 31/670 KMB AOHX 31/670

670 1 030 236 302 780 C 30/710 KM AOHX 30/710
1 030 315 386 1 010 C 40/710 K30M AOH 240/710 G
1 150 345 421 1 600 C 31/710 KMB AOHX 31/710

710 1 090 250 316 920 C 30/750 KMB AOH 30/750
1 220 365 441 1 930 C 31/750 KMB AOH 31/750

SKF Explorer bearing
1) For additional bearing data † product table, page 856
2) For additional withdrawal sleeve data † skf.com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore
