P. 872

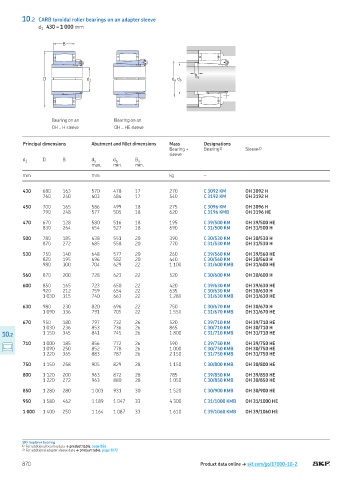

10.2 CARB toroidal roller bearings on an adapter sleeve
d 430 – 1 000 mm
1
B
D d 1 d a d b B a
Bearing on an Bearing on an
OH .. H sleeve OH .. HE sleeve
Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B d a d b B a
max. min. min.
mm mm kg –
430 680 163 570 478 17 270 C 3092 KM OH 3092 H
760 240 603 484 17 540 C 3192 KM OH 3192 H
450 700 165 586 499 18 275 C 3096 KM OH 3096 H
790 248 577 505 18 620 C 3196 KMB OH 3196 HE
470 670 128 580 516 18 195 C 39/500 KM OH 39/500 HE
830 264 654 527 18 690 C 31/500 KM OH 31/500 H
500 780 185 638 551 20 390 C 30/530 KM OH 30/530 H
870 272 685 558 20 770 C 31/530 KM OH 31/530 H
530 750 140 648 577 20 260 C 39/560 KM OH 39/560 HE
820 195 696 582 20 440 C 30/560 KM OH 30/560 H
980 300 704 629 22 1 100 C 31/600 KMB OH 31/600 HE
560 870 200 728 623 22 520 C 30/600 KM OH 30/600 H
600 850 165 723 650 22 420 C 39/630 KM OH 39/630 HE
920 212 759 654 22 635 C 30/630 KM OH 30/630 H
1 030 315 740 663 22 1 280 C 31/630 KMB OH 31/630 HE
630 980 230 820 696 22 750 C 30/670 KM OH 30/670 H
1 090 336 791 705 22 1 550 C 31/670 KMB OH 31/670 HE
670 950 180 797 732 26 520 C 39/710 KM OH 39/710 HE
1 030 236 853 736 26 865 C 30/710 KM OH 30/710 H
1 150 345 841 745 26 1 800 C 31/710 KMB OH 31/710 HE
10.2
710 1 000 185 856 772 26 590 C 39/750 KM OH 39/750 HE
1 090 250 852 778 26 1 000 C 30/750 KMB OH 30/750 HE
1 220 365 883 787 26 2 150 C 31/750 KMB OH 31/750 HE
750 1 150 258 905 829 28 1 150 C 30/800 KMB OH 30/800 HE
800 1 120 200 963 872 28 785 C 39/850 KM OH 39/850 HE
1 220 272 963 880 28 1 050 C 30/850 KMB OH 30/850 HE
850 1 280 280 1 003 931 30 1 520 C 30/900 KMB OH 30/900 HE
950 1 580 462 1 189 1 047 33 4 300 C 31/1000 KMB OH 31/1000 HE
1 000 1 400 250 1 164 1 087 33 1 610 C 39/1060 KMB OH 39/1060 HE
SKF Explorer bearing
1) For additional bearing data † product table, page 856
2) For additional adapter sleeve data † product table, page 1072
870 Product data online † skf.com/go/17000-10-2
