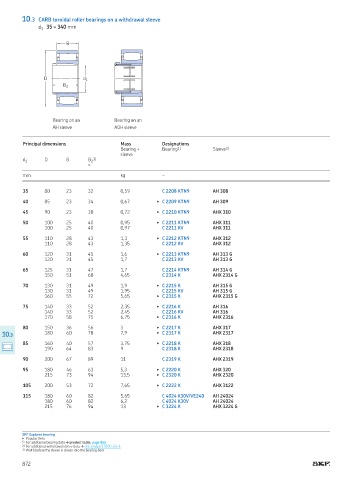

10.3 CARB toroidal roller bearings on a withdrawal sleeve
d 35 – 340 mm
1

B

D d 1
B 2

Bearing on an Bearing on an
AH sleeve AOH sleeve

Principal dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B B 3)
2
≈
mm kg –

35 80 23 32 0,59 C 2208 KTN9 AH 308

40 85 23 34 0,67 ▶ C 2209 KTN9 AH 309

45 90 23 38 0,72 ▶ C 2210 KTN9 AHX 310

50 100 25 40 0,95 ▶ C 2211 KTN9 AHX 311
100 25 40 0,97 C 2211 KV AHX 311

55 110 28 43 1,3 ▶ C 2212 KTN9 AHX 312
110 28 43 1,35 C 2212 KV AHX 312

60 120 31 45 1,6 ▶ C 2213 KTN9 AH 313 G
120 31 45 1,7 C 2213 KV AH 313 G

65 125 31 47 1,7 C 2214 KTN9 AH 314 G
150 51 68 4,65 C 2314 K AHX 2314 G

70 130 31 49 1,9 ▶ C 2215 K AH 315 G
130 31 49 1,95 C 2215 KV AH 315 G
160 55 72 5,65 ▶ C 2315 K AHX 2315 G

75 140 33 52 2,35 ▶ C 2216 K AH 316
140 33 52 2,45 C 2216 KV AH 316
170 58 75 6,75 ▶ C 2316 K AHX 2316

80 150 36 56 3 ▶ C 2217 K AHX 317
180 60 78 7,9 ▶ C 2317 K AHX 2317
10.3

85 160 40 57 3,75 ▶ C 2218 K AHX 318
190 64 83 9 C 2318 K AHX 2318

90 200 67 89 11 C 2319 K AHX 2319

95 180 46 63 5,3 ▶ C 2220 K AHX 320
215 73 94 13,5 ▶ C 2320 K AHX 2320

105 200 53 72 7,65 ▶ C 2222 K AHX 3122

115 180 60 82 5,65 C 4024 K30V/VE240 AH 24024
180 60 82 6,2 C 4024 K30V AH 24024
215 76 94 13 ▶ C 3224 K AHX 3224 G

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 856
2) For additional withdrawal sleeve data † skf.com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore
