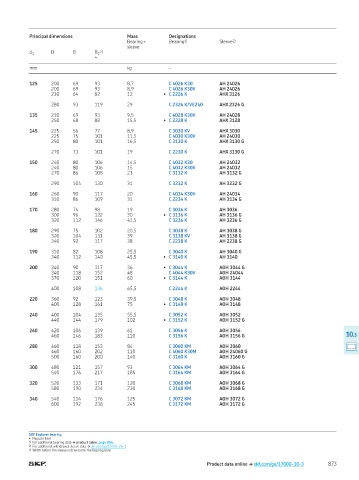

Principal dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B B 3)
2
≈
mm kg –

125 200 69 93 8,7 C 4026 K30 AH 24026
200 69 93 8,9 C 4026 K30V AH 24026
230 64 82 12 ▶ C 2226 K AHX 3126

280 93 119 29 C 2326 K/VE240 AHX 2326 G

135 210 69 93 9,5 C 4028 K30V AH 24028
250 68 88 15,5 ▶ C 2228 K AHX 3128

145 225 56 77 8,9 C 3030 KV AHX 3030
225 75 101 11,5 C 4030 K30V AH 24030
250 80 101 16,5 C 3130 K AHX 3130 G

270 73 101 19 C 2230 K AHX 3130 G

150 240 80 106 14,5 C 4032 K30 AH 24032
240 80 106 15 C 4032 K30V AH 24032
270 86 108 23 C 3132 K AH 3132 G

290 104 130 31 C 3232 K AH 3232 G

160 260 90 117 20 C 4034 K30V AH 24034
310 86 109 31 C 2234 K AH 3134 G

170 280 74 98 19 C 3036 K AH 3036
300 96 122 30 ▶ C 3136 K AH 3136 G
320 112 146 41,5 C 3236 K AH 3236 G

180 290 75 102 20,5 C 3038 K AH 3038 G
320 104 131 39 C 3138 KV AH 3138 G
340 92 117 38 C 2238 K AH 2238 G

190 310 82 108 25,5 C 3040 K AH 3040 G
340 112 140 45,5 ▶ C 3140 K AH 3140

200 340 90 117 36 ▶ C 3044 K AOH 3044 G
340 118 152 48 C 4044 K30V AOH 24044
370 120 151 60 ▶ C 3144 K AOH 3144

400 108 136 65,5 C 2244 K AOH 2244

220 360 92 123 39,5 C 3048 K AOH 3048
400 128 161 75 ▶ C 3148 K AOH 3148

240 400 104 135 55,5 C 3052 K AOH 3052
440 144 179 102 ▶ C 3152 K AOH 3152 G

260 420 106 139 61 C 3056 K AOH 3056
460 146 183 110 C 3156 K AOH 3156 G 10.3

280 460 118 153 84 C 3060 KM AOH 3060
460 160 202 110 C 4060 K30M AOH 24060 G
500 160 200 140 C 3160 K AOH 3160 G

300 480 121 157 93 C 3064 KM AOH 3064 G
540 176 217 185 C 3164 KM AOH 3164 G

320 520 133 171 120 C 3068 KM AOH 3068 G
580 190 234 230 C 3168 KM AOH 3168 G

340 540 134 176 125 C 3072 KM AOH 3072 G
600 192 238 245 C 3172 KM AOH 3172 G

SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 856
2) For additional withdrawal sleeve data † skf.com/go/17000-24-1
3) Width before the sleeve is driven into the bearing bore
