P. 870
product table

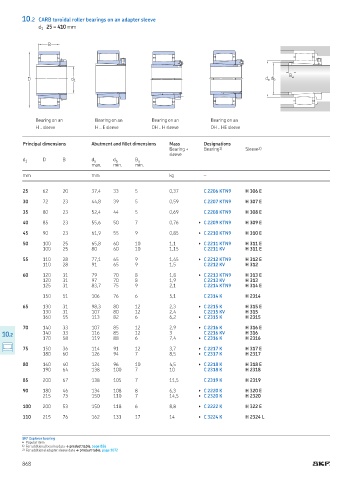

10.2 CARB toroidal roller bearings on an adapter sleeve
d 25 – 410 mm
1
B
B a
D d 1 d a d b
Bearing on an Bearing on an Bearing on an Bearing on an
H .. sleeve H .. E sleeve OH .. H sleeve OH .. HE sleeve
Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d 1 D B d a d b B a
max. min. min.
mm mm kg –
25 62 20 37,4 33 5 0,37 C 2206 KTN9 H 306 E
30 72 23 44,8 39 5 0,59 C 2207 KTN9 H 307 E
35 80 23 52,4 44 5 0,69 C 2208 KTN9 H 308 E
40 85 23 55,6 50 7 0,76 ▶ C 2209 KTN9 H 309 E
45 90 23 61,9 55 9 0,85 ▶ C 2210 KTN9 H 310 E
50 100 25 65,8 60 10 1,1 ▶ C 2211 KTN9 H 311 E
100 25 80 60 10 1,15 C 2211 KV H 311 E
55 110 28 77,1 65 9 1,45 ▶ C 2212 KTN9 H 312 E
110 28 91 65 9 1,5 C 2212 KV H 312
60 120 31 79 70 8 1,8 ▶ C 2213 KTN9 H 313 E
120 31 97 70 8 1,9 C 2213 KV H 313
125 31 83,7 75 9 2,1 C 2214 KTN9 H 314 E
150 51 106 76 6 5,1 C 2314 K H 2314
65 130 31 98,3 80 12 2,3 ▶ C 2215 K H 315 E
130 31 107 80 12 2,4 C 2215 KV H 315
160 55 113 82 6 6,2 ▶ C 2315 K H 2315
70 140 33 107 85 12 2,9 ▶ C 2216 K H 316 E
140 33 116 85 12 3 C 2216 KV H 316
10.2
170 58 119 88 6 7,4 ▶ C 2316 K H 2316
75 150 36 114 91 12 3,7 ▶ C 2217 K H 317 E
180 60 126 94 7 8,5 ▶ C 2317 K H 2317
80 160 40 124 96 10 4,5 ▶ C 2218 K H 318 E
190 64 138 100 7 10 C 2318 K H 2318
85 200 67 138 105 7 11,5 C 2319 K H 2319
90 180 46 134 108 8 6,3 ▶ C 2220 K H 320 E
215 73 150 110 7 14,5 ▶ C 2320 K H 2320
100 200 53 150 118 6 8,8 ▶ C 2222 K H 322 E
110 215 76 162 131 17 14 ▶ C 3224 K H 2324 L
SKF Explorer bearing
▶ Popular item
1) For additional bearing data † product table, page 856
2) For additional adapter sleeve data † product table, page 1072
