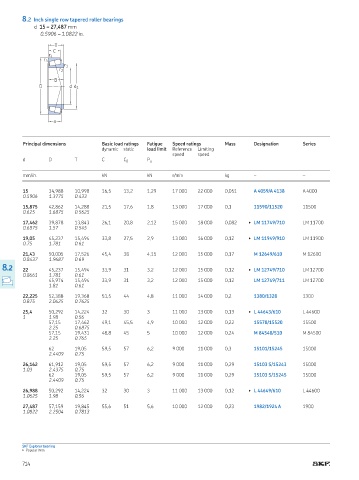

8.2 Inch single row tapered roller bearings
d 15 – 27,487 mm
0.5906 – 1.0822 in.

T
C
r 4
r 3
r 1
r 2
B
D d d 1

a

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation Series
dynamic static load limit Reference Limiting
speed speed
d D T C C 0 P u

mm/in. kN kN r/min kg – –

15 34,988 10,998 16,5 13,2 1,29 17 000 22 000 0,051 A 4059/A 4138 A 4000
0.5906 1.3775 0.433

15,875 42,862 14,288 21,5 17,6 1,8 13 000 17 000 0,1 11590/11520 11500
0.625 1.6875 0.5625

17,462 39,878 13,843 26,1 20,8 2,12 15 000 18 000 0,082 ▶ LM 11749/710 LM 11700
0.6875 1.57 0.545

19,05 45,237 15,494 33,8 27,5 2,9 13 000 16 000 0,12 ▶ LM 11949/910 LM 11900
0.75 1.781 0.61

21,43 50,005 17,526 45,4 38 4,15 12 000 15 000 0,17 M 12649/610 M 12600
0.8437 1.9687 0.69

8.2 22 45,237 15,494 33,9 31 3,2 12 000 15 000 0,12 ▶ LM 12749/710 LM 12700
0.8661 1.781 0.61
45,974 15,494 33,9 31 3,2 12 000 15 000 0,12 LM 12749/711 LM 12700
1.81 0.61

22,225 52,388 19,368 51,5 44 4,8 11 000 14 000 0,2 1380/1328 1300
0.875 2.0625 0.7625

25,4 50,292 14,224 32 30 3 11 000 13 000 0,13 ▶ L 44643/610 L 44600
1 1.98 0.56
57,15 17,462 49,1 45,5 4,9 10 000 12 000 0,22 15578/15520 15500
2.25 0.6875
57,15 19,431 48,8 45 5 10 000 12 000 0,24 M 84548/510 M 84500
2.25 0.765

62 19,05 59,5 57 6,2 9 000 11 000 0,3 15101/15245 15000
2.4409 0.75

26,162 61,912 19,05 59,5 57 6,2 9 000 11 000 0,29 15103 S/15243 15000
1.03 2.4375 0.75
62 19,05 59,5 57 6,2 9 000 11 000 0,29 15103 S/15245 15000
2.4409 0.75

26,988 50,292 14,224 32 30 3 11 000 13 000 0,12 ▶ L 44649/610 L 44600
1.0625 1.98 0.56

27,487 57,159 19,845 55,6 51 5,6 10 000 12 000 0,23 1982/1924 A 1900
1.0822 2.2504 0.7813

SKF Explorer bearing
▶ Popular item
714
