4 Self-aligning ball bearings

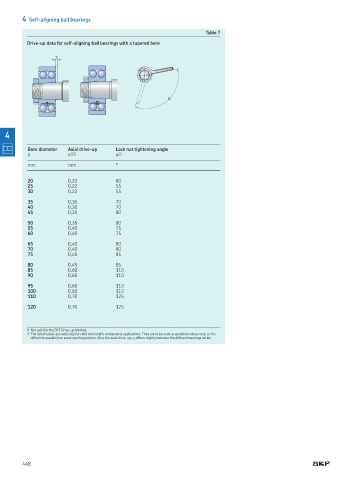

Table 7
Drive-up data for self-aligning ball bearings with a tapered bore

s

α

4

Bore diameter Axial drive-up Lock nut tightening angle
d s 1)2) α 2)
mm mm °

20 0,22 80
25 0,22 55
30 0,22 55
35 0,30 70
40 0,30 70
45 0,35 80

50 0,35 80
55 0,40 75
60 0,40 75
65 0,40 80
70 0,40 80
75 0,45 85
80 0,45 85
85 0,60 110
90 0,60 110

95 0,60 110
100 0,60 110
110 0,70 125
120 0,70 125

1) Not valid for the SKF Drive-up Method.
2) The listed values are valid only for solid steel shafts and general applications. They are to be used as guideline values only, as it is
dificult to establish an exact starting position Also, the axial drive-up, s, differs slightly between the different bearings series

448
