Designs and variants
Designs and Inch sleeves are coated with a solventless
rust inhibitor
variants Adapter sleeves listed in the product
tables, page 1072, constitute the standard
SKF assortment and are only part of the
SKF supplies: complete assortment For larger sizes (bore
diameter ≥ 1 060 mm) and variants not
• metric adapter sleeves listed, contact SKF
– with a metric bore
– with an inch bore
These sleeves are not listed in this
catalogue, but can be found online at
skf com/go/17000-23-3
• inch adapter sleeves

The sleeves are slit and are supplied complete
with a lock nut and locking device (ig. 2):

• Smaller sizes have a nut and a lock
washer
• Larger sizes have a nut and a locking clip
or locking plate
Metric sleeves:

• with a bore diameter ≤ 180 mm (size ≤ 40)
are phosphated
• with a bore diameter > 180 mm are coated
with a solventless rust inhibitor

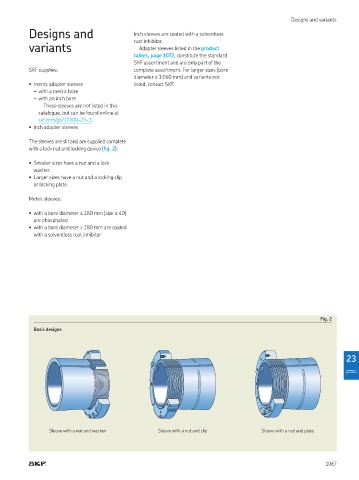

Fig. 2
Basic designs

23

Sleeve with a nut and washer Sleeve with a nut and clip Sleeve with a nut and plate
