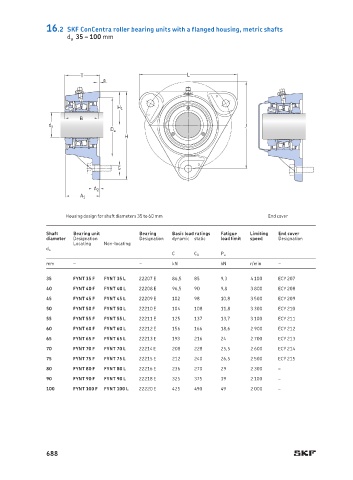

16.2 SKF ConCentra roller bearing units with a flanged housing, metric shafts
d a 35 – 100 mm

T L
a

H 1
B
J
d a
D a
H

G

A 2
A 1
Housing design for shaft diameters 35 to 60 mm End cover

Shaft Bearing unit Bearing Basic load ratings Fatigue Limiting End cover
diameter Designation Designation dynamic static load limit speed Designation
Locating Non-locating
d a
C C 0 P u
mm – – kN kN r/min –
35 FYNT 35 F FYNT 35 L 22207 E 86,5 85 9,3 4 100 ECY 207
40 FYNT 40 F FYNT 40 L 22208 E 96,5 90 9,8 3 800 ECY 208
45 FYNT 45 F FYNT 45 L 22209 E 102 98 10,8 3 500 ECY 209
50 FYNT 50 F FYNT 50 L 22210 E 104 108 11,8 3 300 ECY 210
55 FYNT 55 F FYNT 55 L 22211 E 125 137 13,7 3 100 ECY 211
60 FYNT 60 F FYNT 60 L 22212 E 156 166 18,6 2 900 ECY 212
65 FYNT 65 F FYNT 65 L 22213 E 193 216 24 2 700 ECY 213
70 FYNT 70 F FYNT 70 L 22214 E 208 228 25,5 2 600 ECY 214
75 FYNT 75 F FYNT 75 L 22215 E 212 240 26,5 2 500 ECY 215
80 FYNT 80 F FYNT 80 L 22216 E 236 270 29 2 300 –
90 FYNT 90 F FYNT 90 L 22218 E 325 375 39 2 100 –
100 FYNT 100 F FYNT 100 L 22220 E 425 490 49 2 000 –

688
