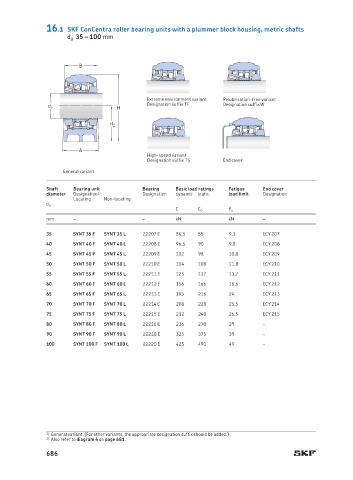

16.1 SKF ConCentra roller bearing units with a plummer block housing, metric shafts
d a 35 – 100 mm

B

Extreme environment variant Relubrication-free variant
Designation suffix TF Designation suffix W
d a H
H 1

A
High-speed variant
Designation suffix TS End cover
General variant

Shaft Bearing unit Bearing Basic load ratings Fatigue End cover
diameter Designation 1) Designation dynamic static load limit Designation
Locating Non-locating
d a
C C 0 P u
mm – – kN kN –
35 SYNT 35 F SYNT 35 L 22207 E 86,5 85 9,3 ECY 207
40 SYNT 40 F SYNT 40 L 22208 E 96,5 90 9,8 ECY 208
45 SYNT 45 F SYNT 45 L 22209 E 102 98 10,8 ECY 209
50 SYNT 50 F SYNT 50 L 22210 E 104 108 11,8 ECY 210
55 SYNT 55 F SYNT 55 L 22211 E 125 137 13,7 ECY 211
60 SYNT 60 F SYNT 60 L 22212 E 156 166 18,6 ECY 212
65 SYNT 65 F SYNT 65 L 22213 E 193 216 24 ECY 213
70 SYNT 70 F SYNT 70 L 22214 E 208 228 25,5 ECY 214
75 SYNT 75 F SYNT 75 L 22215 E 212 240 26,5 ECY 215
80 SYNT 80 F SYNT 80 L 22216 E 236 270 29 –
90 SYNT 90 F SYNT 90 L 22218 E 325 375 39 –
100 SYNT 100 F SYNT 100 L 22220 E 425 490 49 –

1) General variant. (For other variants, the appropriate designation suffix should be added.)
2) Also refer to diagram 4 on page 681.
686
