Page 689 - SKF-bearing-housings

Ordering information

Ordering information

SKF ConCentra roller bearing units are sup-
plied assembled, greased and ready-to-mount.
End covers must be ordered separately.
Order example
Two SKF ConCentra roller bearing units with
a plummer block housing are required for a
50 mm shaft diameter. One bearing unit will
accommodate the bearing in the non-locating
position at the end of the shaft. The other
bearing unit will accommodate the bearing in
the locating position and a through shaft. The
bearing units should be relubrication-free.
The following items should be ordered:
• 1 bearing unit SYNT 50 FW
• 1 bearing unit SYNT 50 LW
• 1 end cover ECY 210

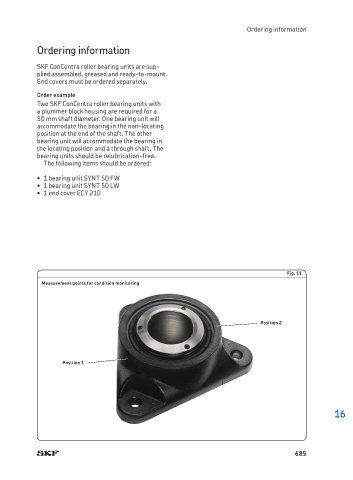

Fig. 11
Measurement points for condition monitoring

Position 2

Position 1

16

685
