Metric roller bearing units SYNT and FYNT series (SKF ConCentra)

Condition monitoring Accessories

SYNT series The following accessories are available for SKF
SKF ConCentra roller bearing units in the ConCentra roller bearing units:
SYNT series are prepared for condition moni-
toring as they have three flat surfaces cast • Adapter for G 1/4 connections: LAPN 1/8
into the housing († fig. 10). • Automatic lubricator: SKF SYSTEM 24
Positions 1 and 3 are perpendicular to the • Grease meter: LAGM 1000E
shaft, and should be used when the unit is hung • Condition monitoring sensors
from its support or when the load acts away
from or toward the support surface. For additional information, refer to SKF tools
Position 2 is a measurement point parallel and products († page 47).
to the shaft and should be used when axial
loads occur.

FYNT series
Accelerometers with magnets that can accom-
modate rounded surfaces can be attached to
bearing units in the FYNT series († fig. 11).
Position 1 (360° surface area) is perpen-
dicular to the shaft, and should be used when
the load acts away from or toward the support
surface.
Position 2 (360° surface area) is parallel to
the shaft and should be used when axial loads
occur.

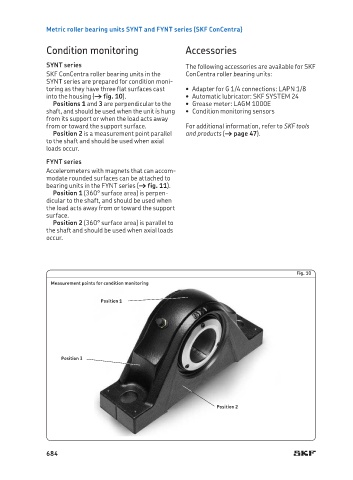

Fig. 10
Measurement points for condition monitoring

Position 1

Position 3

Position 2
