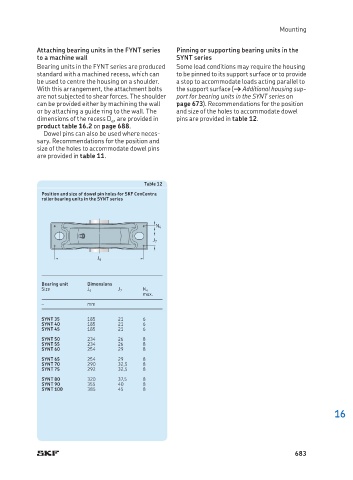

Mounting

Attaching bearing units in the FYNT series Pinning or supporting bearing units in the
to a machine wall SYNT series
Bearing units in the FYNT series are produced Some load conditions may require the housing
standard with a machined recess, which can to be pinned to its support surface or to provide
be used to centre the housing on a shoulder. a stop to accommodate loads acting parallel to
With this arrangement, the attachment bolts the support surface († Additional housing sup-
are not subjected to shear forces. The shoulder port for bearing units in the SYNT series on
can be provided either by machining the wall page 673). Recommendations for the position
or by attaching a guide ring to the wall. The and size of the holes to accommodate dowel
dimensions of the recess D a , are provided in pins are provided in table 12.
product table 16.2 on page 688.
Dowel pins can also be used where neces-
sary. Recommendations for the position and
size of the holes to accommodate dowel pins
are provided in table 11.

Table 12
Position and size of dowel pin holes for SKF ConCentra
roller bearing units in the SYNT series

N 4

J 7

J 6

Bearing unit Dimensions
Size J 6 J 7 N 4
max.
– mm
SYNT 35 185 21 6
SYNT 40 185 21 6
SYNT 45 185 21 6
SYNT 50 234 26 8
SYNT 55 234 26 8
SYNT 60 254 29 8
SYNT 65 254 29 8
SYNT 70 290 32,5 8
SYNT 75 292 32,5 8
SYNT 80 320 37,5 8
SYNT 90 355 40 8
SYNT 100 385 45 8
