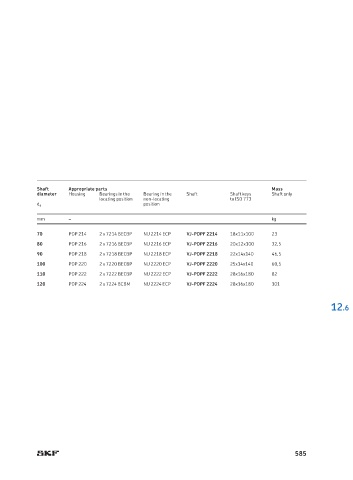

Page 589 - SKF-bearing-housings

Shaft Appropriate parts Mass
diameter Housing Bearings in the Bearing in the Shaft Shaft keys Shaft only
locating position non-locating to ISO 773
position
d a
mm – kg
70 PDP 214 2 x 7214 BECBP NU 2214 ECP VJ-PDPF 2214 18x11x100 23
80 PDP 216 2 x 7216 BECBP NU 2216 ECP VJ-PDPF 2216 20x12x100 32,5
90 PDP 218 2 x 7218 BECBP NU 2218 ECP VJ-PDPF 2218 22x14x140 46,5
100 PDP 220 2 x 7220 BECBP NU 2220 ECP VJ-PDPF 2220 25x14x140 60,5
110 PDP 222 2 x 7222 BECBP NU 2222 ECP VJ-PDPF 2222 28x16x180 82
120 PDP 224 2 x 7224 BCBM NU 2224 ECP VJ-PDPF 2224 28x16x180 101

12.6

585
