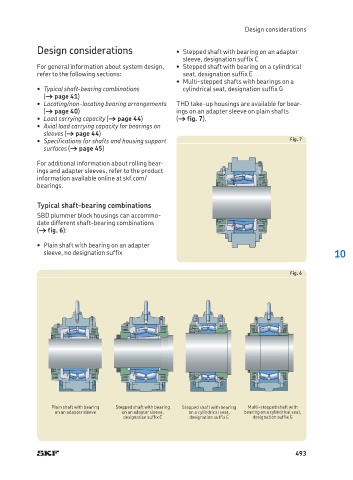

Design considerations

Design considerations • Stepped shaft with bearing on an adapter
sleeve, designation suffix C
For general information about system design, • Stepped shaft with bearing on a cylindrical
refer to the following sections: seat, designation suffix E
• Multi-stepped shafts with bearings on a
• Typical shaft-bearing combinations cylindrical seat, designation suffix G
(† page 41)
• Locating/non-locating bearing arrangements THD take-up housings are available for bear-
(† page 40) ings on an adapter sleeve on plain shafts
• Load carrying capacity († page 44) († fig. 7).
• Axial load carrying capacity for bearings on
sleeves († page 44)
• Specifications for shafts and housing support Fig. 7
surfaces († page 45)

For additional information about rolling bear-
ings and adapter sleeves, refer to the product
information available online at skf.com/
bearings.

Typical shaft-bearing combinations
SBD plummer block housings can accommo-
date different shaft-bearing combinations
(† fig. 6):
• Plain shaft with bearing on an adapter
sleeve, no designation suffix 10

Fig. 6

Plain shaft with bearing Stepped shaft with bearing Stepped shaft with bearing Multi-stepped shaft with
on an adapter sleeve on an adapter sleeve, on a cylindrical seat, bearing on a cylindrical seat,
designation suffix C designation suffix E designation suffix G

493
