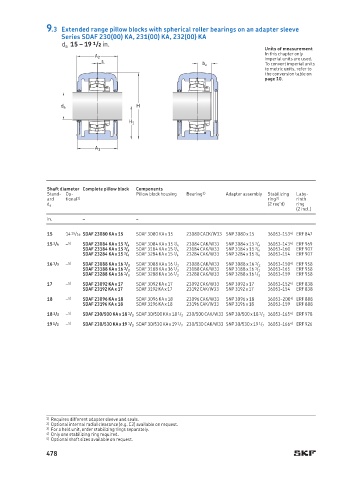

9.3 Extended range pillow blocks with spherical roller bearings on an adapter sleeve
Series SDAF 230(00) KA, 231(00) KA, 232(00) KA
d a 15 – 19 1 /2 in.
Units of measurement
In this chapter only
A 2 imperial units are used.
s
b a To convert imperial units
to metric units, refer to
the conversion table on
page 10.
d a H

H 1

A 1

Shaft diameter Complete pillow block Components
Stand- Op- Pillow block housing Bearing 2) Adapter assembly Stabilizing Laby-
ard tion al 1) ring 3) rinth
(2 req’d) ring
d a
(2 incl.)
in. – –
15 14 15 /16 SDAF 23080 KA x 15 SDAF 3080 KA x 15 23080 CACK/W33 SNP 3080 x 15 36053-153 4) ERF 847
15 3 /4 – 5) SDAF 23084 KA x 15 3 / 4 SDAF 3084 KA x 15 3 / 4 23084 CAK/W33 SNP 3084 x 15 3 / 4 36053-143 4) ERF 969
23184 CAK/W33 36053-160 ERF 907
SDAF 23184 KA x 15 3 / 4 SDAF 3184 KA x 15 3 / 4 SNP 3184 x 15 3 / 4
SDAF 23284 KA x 15 3 / 4 SDAF 3284 KA x 15 3 / 4 23284 CAK/W33 SNP 3284 x 15 3 / 4 36053-154 ERF 907
16 1 /2 – 5) SDAF 23088 KA x 16 1 / 2 SDAF 3088 KA x 16 1 / 2 23088 CAK/W33 SNP 3088 x 16 1 / 2 36053-150 4) ERF 958
23188 CAK/W33 36053-165 ERF 958
SDAF 23188 KA x 16 1 / 2 SDAF 3188 KA x 16 1 / 2 SNP 3188 x 16 1 / 2
SDAF 23288 KA x 16 1 / 2 SDAF 3288 KA x 16 1 / 2 23288 CAK/W33 SNP 3288 x 16 1 / 2 36053-159 ERF 958
17 – 5) SDAF 23092 KA x 17 SDAF 3092 KA x 17 23092 CAK/W33 SNP 3092 x 17 36053-152 4) ERF 838
SDAF 23192 KA x 17 SDAF 3192 KA x 17 23192 CAK/W33 SNP 3192 x 17 36053-154 ERF 838
18 – 5) SDAF 23096 KA x 18 SDAF 3096 KA x 18 23096 CAK/W33 SNP 3096 x 18 36053-200 4) ERF 888
SDAF 23196 KA x 18 SDAF 3196 KA x 18 23196 CAK/W33 SNP 3196 x 18 36053-159 ERF 888
18 1 /2 – 5) SDAF 230/500 KA x 18 1 / 2 SDAF 30/500 KA x 18 1 / 2 230/500 CAK/W33 SNP 30/500 x 18 1 / 2 36053-165 4) ERF 978
19 1 /2 – 5) SDAF 230/530 KA x 19 1 / 2 SDAF 30/530 KA x 19 1 / 2 230/530 CAK/W33 SNP 30/530 x 19 1 / 2 36053-166 4) ERF 926

1) Requires different adapter sleeve and seals.
2) Optional internal radial clearance (e.g. C3) available on request.
3) For a held unit, order stabilizing rings separately.
4) Only one stabilizing ring required.
5) Optional shaft sizes available on request.
