P. 480

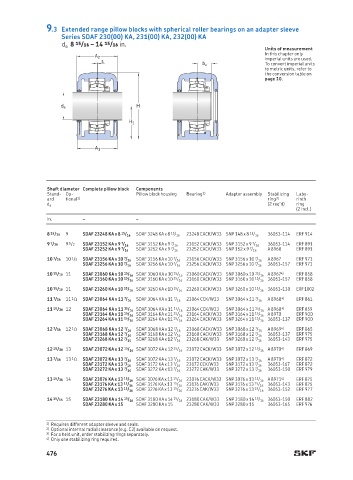

9.3 Extended range pillow blocks with spherical roller bearings on an adapter sleeve
Series SDAF 230(00) KA, 231(00) KA, 232(00) KA
d a 8 15 /16 – 14 15 /16 in.
Units of measurement
In this chapter only
A 2 imperial units are used.
s
b a To convert imperial units
to metric units, refer to
the conversion table on
page 10.
d a H
H 1
A 1
Shaft diameter Complete pillow block Components
Stand- Op- Pillow block housing Bearing 2) Adapter assembly Stabilizing Laby-
ard tion al 1) ring 3) rinth
(2 req’d) ring
d a
(2 incl.)
in. – –
8 15 /16 9 SDAF 23248 KA x 8 15 / 16 SDAF 3248 KA x 8 15 / 16 23248 CACK/W33 SNP 148 x 8 15 / 16 36053-114 ERF 914
9 7 /16 9 1 /2 SDAF 23152 KA x 9 7 / 16 SDAF 3152 KA x 9 7 / 16 23152 CACK/W33 SNP 3152 x 9 7 / 16 36053-114 ERF 891
A 8968 ERF 891
SDAF 23252 KA x 9 7 / 16 SDAF 3252 KA x 9 7 / 16 23252 CACK/W33 SNP 152 x 9 7 / 16
10 7 /16 10 1 /2 SDAF 23156 KA x 10 7 / 16 SDAF 3156 KA x 10 7 / 16 23156 CACK/W33 SNP 3156 x 10 7 / 16 A 8967 ERF 973
SDAF 23256 KA x 10 7 / 16 SDAF 3256 KA x 10 7 / 16 23256 CACK/W33 SNP 3256 x 10 7 / 16 36053-157 ERF 973
10 15 /16 11 SDAF 23060 KA x 10 15 / 16 SDAF 3060 KA x 10 15 / 16 23060 CACK/W33 SNP 3060 x 10 15 / 16 A 8967 4) ERF 858
SDAF 23160 KA x 10 15 / 16 SDAF 3160 KA x 10 15 / 16 23160 CACK/W33 SNP 3160 x 10 15 / 16 36053-157 ERF 858
10 15 /16 11 SDAF 23260 KA x 10 15 / 16 SDAF 3260 KA x 10 15 / 16 23260 CACK/W33 SNP 3260 x 10 15 / 16 36053-130 ERF 1002
11 7 /16 11 1 /2 SDAF 23064 KA x 11 7 / 16 SDAF 3064 KA x 11 7 / 16 23064 CCK/W33 SNP 3064 x 11 7 / 16 A 8968 4) ERF 861
11 15 /16 12 SDAF 23064 KA x 11 15 / 16 SDAF 3064 KA x 11 15 / 16 23064 CCK/W33 SNP 3064 x 11 15 / 16 A 8968 4) ERF 859
SDAF 23164 KA x 11 15 / 16 SDAF 3164 KA x 11 15 / 16 23164 CACK/W33 SNP 3164 x 11 15 / 16 A 8970 ERF 900
SDAF 23264 KA x 11 15 / 16 SDAF 3264 KA x 11 15 / 16 23264 CACK/W33 SNP 3264 x 11 15 / 16 36053-137 ERF 900
12 7 /16 12 1 /2 SDAF 23068 KA x 12 7 / 16 SDAF 3068 KA x 12 7 / 16 23068 CACK/W33 SNP 3068 x 12 7 / 16 A 8969 4) ERF 865
36053-137 ERF 975
SDAF 23168 KA x 12 7 / 16 SDAF 3168 KA x 12 7 / 16 23168 CACK/W33 SNP 3168 x 12 7 / 16
SDAF 23268 KA x 12 7 / 16 SDAF 3268 KA x 12 7 / 16 23268 CAK/W33 SNP 3268 x 12 7 / 16 36053-143 ERF 975
12 15 /16 13 SDAF 23072 KA x 12 15 / 16 SDAF 3072 KA x 12 15 / 16 23072 CACK/W33 SNP 3072 x 12 15 / 16 A 8970 4) ERF 869
13 7 /16 13 1 /2 SDAF 23072 KA x 13 7 / 16 SDAF 3072 KA x 13 7 / 16 23072 CACK/W33 SNP 3072 x 13 7 / 16 A 8970 4) ERF 872
23172 CCK/W33 36053-167 ERF 872
SDAF 23172 KA x 13 7 / 16 SDAF 3172 KA x 13 7 / 16 SNP 3172 x 13 7 / 16
23272 CAK/W33 36053-150 ERF 979
SDAF 23272 KA x 13 7 / 16 SDAF 3272 KA x 13 7 / 16 SNP 3272 x 13 7 / 16
13 15 /16 14 SDAF 23076 KA x 13 15 / 16 SDAF 3076 KA x 13 15 / 16 23076 CACK/W33 SNP 3076 x 13 15 / 16 A 8971 4) ERF 875
SDAF 23176 KA x 13 15 / 16 SDAF 3176 KA x 13 15 / 16 23176 CAK/W33 SNP 3176 x 13 15 / 16 36053-143 ERF 875
SDAF 23276 KA x 13 15 / 16 SDAF 3276 KA x 13 15 / 16 23276 CAK/W33 SNP 3276 x 13 15 / 16 36053-152 ERF 977
14 15 /16 15 SDAF 23180 KA x 14 15 / 16 SDAF 3180 KA x 14 15 / 16 23180 CAK/W33 SNP 3180 x 14 15 / 16 36053-150 ERF 882
SDAF 23280 KA x 15 SDAF 3280 KA x 15 23280 CAK/W33 SNP 3280 x 15 36053-165 ERF 976
1) Requires different adapter sleeve and seals.
2) Optional internal radial clearance (e.g. C3) available on request.
3) For a held unit, order stabilizing rings separately.
4) Only one stabilizing ring required.
