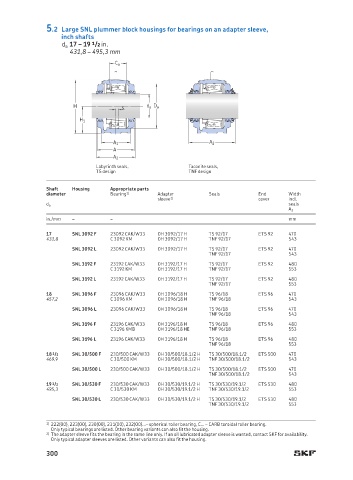

5.2 Large SNL plummer block housings for bearings on an adapter sleeve,
inch shafts
d a 17 – 19 1 /2 in.
431,8 – 495,3 mm
C a

H s d a D a
H 1

A 1 A 2
A
A 2
Labyrinth seals, Taconite seals,
TS design TNF design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Seals End Width
sleeve 2) cover incl.
seals
d a
A 2
in./mm – – mm
17 SNL 3092 F 23092 CAK/W33 OH 3 092/17 H TS 92/17 ETS 92 470
431,8 C 3092 KM OH 3092/17 H TNF 92/17 543
SNL 3092 L 23092 CAK/W33 OH 3092/17 H TS 92/17 ETS 92 470
TNF 92/17 543
SNL 3192 F 23192 CAK/W33 OH 3192/17 H TS 92/17 ETS 92 480
C 3192 KM OH 3192/17 H TNF 92/17 553
SNL 3192 L 23192 CAK/W33 OH 3192/17 H TS 92/17 ETS 92 480
TNF 92/17 553
18 SNL 3096 F 23096 CAK/W33 OH 3096/18 H TS 96/18 ETS 96 470
457,2 C 3096 KM OH 3096/18 H TNF 96/18 543
SNL 3096 L 23096 CAK/W33 OH 3096/18 H TS 96/18 ETS 96 470
TNF 96/18 543
SNL 3196 F 23196 CAK/W33 OH 3196/18 H TS 96/18 ETS 96 480
C 3196 KMB OH 3196/18 HE TNF 96/18 553
SNL 3196 L 23196 CAK/W33 OH 3196/18 H TS 96/18 ETS 96 480
TNF 96/18 553
18 1 /2 SNL 30/500 F 230/500 CAK/W33 OH 30/500/18.1/2 H TS 30/500/18.1/2 ETS 500 470
469,9 C 30/500 KM OH 30/500/18.1/2 H TNF 30/500/18.1/2 543
SNL 30/500 L 230/500 CAK/W33 OH 30/500/18.1/2 H TS 30/500/18.1/2 ETS 500 470
TNF 30/500/18.1/2 543
19 1 /2 SNL 30/530 F 230/530 CAK/W33 OH 30/530/19.1/2 H TS 30/530/19.1/2 ETS 530 480
495,3 C 30/530 KM OH 30/530/19.1/2 H TNF 30/530/19.1/2 553
SNL 30/530 L 230/530 CAK/W33 OH 30/530/19.1/2 H TS 30/530/19.1/2 ETS 530 480
TNF 30/530/19.1/2 553

1) 222(00), 223(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing.
Only typical bearings are listed. Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. If an oil lubricated adapter sleeve is wanted, contact SKF for availability.
Only typical adapter sleeves are listed. Other variants can also fit the housing.
