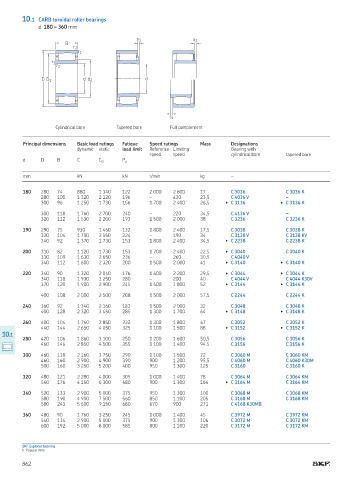

10.1 CARB toroidal roller bearings
d 180 – 360 mm
s 1 s 2
B
r 2
r 1
r 1
r 2
D D 1 d d 2 d
s 1
Cylindrical bore Tapered bore Full complement
Principal dimensions Basic load ratings Fatique Speed ratings Mass Designations
dynamic static load limit Reference Limiting Bearing with
speed speed cylindrical bore tapered bore
d D B C C 0 P u
mm kN kN r/min kg –
180 280 74 880 1 340 122 2 000 2 600 17 C 3036 C 3036 K
280 100 1 320 2 120 196 – 430 23,5 C 4036 V –
300 96 1 250 1 730 156 1 700 2 400 26,5 ▶ C 3136 ▶ C 3136 K
300 118 1 760 2 700 240 – 220 34,5 C 4136 V –
320 112 1 530 2 200 193 1 500 2 000 38 C 3236 C 3236 K
190 290 75 930 1 460 132 1 800 2 400 17,5 C 3038 C 3038 K
320 104 1 700 2 550 224 – 190 34 C 3138 V C 3138 KV
340 92 1 370 1 730 153 1 800 2 400 34,5 ▶ C 2238 C 2238 K
200 310 82 1 120 1 730 153 1 700 2 400 22,5 ▶ C 3040 C 3040 K
310 109 1 630 2 650 236 – 260 30,5 C 4040 V
340 112 1 600 2 320 200 1 500 2 000 41 ▶ C 3140 ▶ C 3140 K
220 340 90 1 320 2 040 176 1 600 2 200 29,5 ▶ C 3044 ▶ C 3044 K
340 118 1 930 3 250 280 – 200 40 C 4044 V C 4044 K30V
370 120 1 900 2 900 245 1 400 1 800 52 ▶ C 3144 ▶ C 3144 K
400 108 2 000 2 500 208 1 500 2 000 57,5 C 2244 C 2244 K
240 360 92 1 340 2 160 183 1 500 2 000 32 C 3048 C 3048 K
400 128 2 320 3 450 285 1 300 1 700 64 ▶ C 3148 ▶ C 3148 K
260 400 104 1 760 2 850 232 1 300 1 800 47 C 3052 C 3052 K
440 144 2 650 4 050 325 1 100 1 500 88 ▶ C 3152 ▶ C 3152 K
10.1
280 420 106 1 860 3 100 250 1 200 1 600 50,5 C 3056 C 3056 K
460 146 2 850 4 500 355 1 100 1 400 94,5 C 3156 C 3156 K
300 460 118 2 160 3 750 290 1 100 1 500 72 C 3060 M C 3060 KM
460 160 2 900 4 900 390 900 1 200 95,5 C 4060 M C 4060 K30M
500 160 3 250 5 200 400 950 1 300 125 C 3160 C 3160 K
320 480 121 2 280 4 000 305 1 000 1 400 78 C 3064 M C 3064 KM
540 176 4 150 6 300 480 900 1 300 164 ▶ C 3164 M C 3164 KM
340 520 133 2 900 5 000 375 950 1 300 100 C 3068 M C 3068 KM
580 190 4 900 7 500 560 850 1 100 205 C 3168 M C 3168 KM
580 243 5 600 9 150 680 670 900 271 C 4168 K30MB
360 480 90 1 760 3 250 245 1 000 1 400 45 C 3972 M C 3972 KM
540 134 2 900 5 000 375 900 1 300 106 C 3072 M C 3072 KM
600 192 5 000 8 000 585 800 1 100 220 C 3172 M C 3172 KM
SKF Explorer bearing
▶ Popular item
