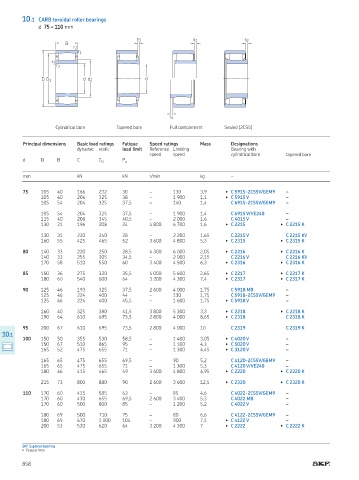

10.1 CARB toroidal roller bearings
d 75 – 110 mm

s 1 s 2 s 2
B
r 2
r 1
r 1
r 2
D D 1 d d 2 d

s 1
Cylindrical bore Tapered bore Full complement Sealed (2CS5)

Principal dimensions Basic load ratings Fatique Speed ratings Mass Designations
dynamic static load limit Reference Limiting Bearing with
speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

75 105 40 166 232 30 – 130 3,9 ▶ C 5915-2CS5V/GEM9 –
105 40 204 325 38 – 1 900 1,1 ▶ C 5915 V –
105 54 204 325 37,5 – 140 1,4 C 6915-2CS5V/GEM9 –

105 54 204 325 37,5 – 1 900 1,4 C 6915 V/VE240 –
115 40 208 345 40,5 – 2 000 1,6 C 4015 V –
130 31 196 208 24 4 800 6 700 1,6 ▶ C 2215 ▶ C 2215 K

130 31 220 240 28 – 2 200 1,65 C 2215 V C 2215 KV
160 55 425 465 52 3 600 4 800 5,3 ▶ C 2315 ▶ C 2315 K

80 140 33 220 250 28,5 4 300 6 000 2,05 ▶ C 2216 ▶ C 2216 K
140 33 255 305 34,5 – 2 000 2,15 C 2216 V C 2216 KV
170 58 510 550 60 3 400 4 500 6,3 ▶ C 2316 ▶ C 2316 K

85 150 36 275 320 35,5 4 000 5 600 2,65 ▶ C 2217 ▶ C 2217 K
180 60 540 600 64 3 200 4 300 7,4 ▶ C 2317 ▶ C 2317 K

90 125 46 193 325 37,5 2 600 4 000 1,75 C 5918 MB –
125 46 224 400 44 – 110 1,75 C 5918-2CS5V/GEM9 –
125 46 224 400 45,5 – 1 600 1,75 ▶ C 5918 V –

160 40 325 380 41,5 3 800 5 300 3,3 ▶ C 2218 ▶ C 2218 K
190 64 610 695 73,5 2 800 4 000 8,65 ▶ C 2318 C 2318 K

95 200 67 610 695 73,5 2 800 4 000 10 C 2319 C 2319 K

10.1
100 150 50 355 530 58,5 – 1 400 3,05 ▶ C 4020 V –
150 67 510 865 95 – 1 100 4,3 ▶ C 5020 V –
165 52 475 655 71 – 1 300 4,45 ▶ C 3120 V –

165 65 475 655 69,5 – 90 5,2 C 4120-2CS5V/GEM9 –
165 65 475 655 71 – 1 300 5,3 C 4120 V/VE240 –
180 46 415 465 49 3 600 4 800 4,95 ▶ C 2220 ▶ C 2220 K

215 73 800 880 90 2 600 3 600 12,5 ▶ C 2320 ▶ C 2320 K

110 170 60 415 585 63 – 85 4,6 C 4022-2CS5V/GEM9 –
170 60 430 655 69,5 2 600 3 400 5,3 C 4022 MB –
170 60 500 800 85 – 1 200 5,2 C 4022 V –

180 69 500 710 75 – 80 6,6 C 4122-2CS5V/GEM9 –
180 69 670 1 000 104 – 900 7,1 ▶ C 4122 V –
200 53 530 620 64 3 200 4 300 7 ▶ C 2222 ▶ C 2222 K

SKF Explorer bearing
▶ Popular item
