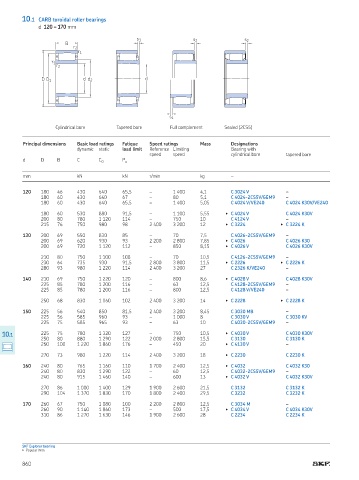

10.1 CARB toroidal roller bearings
d 120 – 170 mm

s 1 s 2 s 2
B
r 2
r 1
r 1
r 2
D D 1 d d 2 d

s 1
Cylindrical bore Tapered bore Full complement Sealed (2CS5)

Principal dimensions Basic load ratings Fatique Speed ratings Mass Designations
dynamic static load limit Reference Limiting Bearing with
speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

120 180 46 430 640 65,5 – 1 400 4,1 C 3024 V –
180 60 430 640 67 – 80 5,1 C 4024-2CS5V/GEM9 –
180 60 430 640 65,5 – 1 400 5,05 C 4024 V/VE240 C 4024 K30V/VE240

180 60 530 880 91,5 – 1 100 5,55 ▶ C 4024 V C 4024 K30V
200 80 780 1 120 114 – 750 10 C 4124 V –
215 76 750 980 98 2 400 3 200 12 ▶ C 3224 ▶ C 3224 K

130 200 69 550 830 85 – 70 7,5 C 4026-2CS5V/GEM9 –
200 69 620 930 93 2 200 2 800 7,85 ▶ C 4026 C 4026 K30
200 69 720 1 120 112 – 850 8,15 ▶ C 4026 V C 4026 K30V

210 80 750 1 100 108 – 70 10,5 C 4126-2CS5V/GEM9 –
230 64 735 930 91,5 2 800 3 800 11,5 ▶ C 2226 ▶ C 2226 K
280 93 980 1 220 114 2 400 3 200 27 C 2326 K/VE240 –

140 210 69 750 1 220 120 – 800 8,6 ▶ C 4028 V C 4028 K30V
225 85 780 1 200 116 – 63 12,5 C 4128-2CS5V/GEM9 –
225 85 780 1 200 116 – 800 12,5 C 4128 V/VE240 –

250 68 830 1 060 102 2 400 3 200 14 ▶ C 2228 ▶ C 2228 K

150 225 56 540 850 81,5 2 400 3 200 8,45 C 3030 MB –
225 56 585 960 93 – 1 000 8 C 3030 V C 3030 KV
225 75 585 965 93 – 63 10 C 4030-2CS5V/GEM9 –

225 75 780 1 320 127 – 750 10,5 ▶ C 4030 V C 4030 K30V
10.1
250 80 880 1 290 122 2 000 2 800 15,5 C 3130 C 3130 K
250 100 1 220 1 860 176 – 450 20 ▶ C 4130 V –

270 73 980 1 220 114 2 400 3 200 18 ▶ C 2230 C 2230 K

160 240 80 765 1 160 110 1 700 2 400 12,5 ▶ C 4032 C 4032 K30
240 80 830 1 290 122 – 60 12,5 C 4032-2CS5V/GEM9 –
240 80 915 1 460 140 – 600 13 ▶ C 4032 V C 4032 K30V

270 86 1 000 1 400 129 1 900 2 600 21,5 C 3132 C 3132 K
290 104 1 370 1 830 170 1 800 2 400 29,5 C 3232 C 3232 K

170 260 67 750 1 080 100 2 200 2 800 12,5 C 3034 M –
260 90 1 140 1 860 173 – 500 17,5 ▶ C 4034 V C 4034 K30V
310 86 1 270 1 630 146 1 900 2 600 28 C 2234 C 2234 K

SKF Explorer bearing
▶ Popular item
