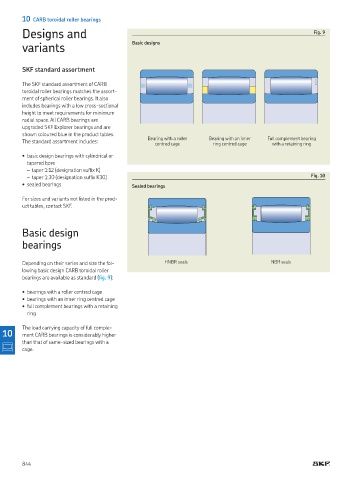

10 CARB toroidal roller bearings
Designs and Fig. 9

variants Basic designs

SKF standard assortment

The SKF standard assortment of CARB
toroidal roller bearings matches the assort-
ment of spherical roller bearings It also
includes bearings with a low cross-sectional
height to meet requirements for minimum
radial space All CARB bearings are
upgraded SKF Explorer bearings and are
shown coloured blue in the product tables
Bearing with a roller Bearing with an inner Full complement bearing
The standard assortment includes: centred cage ring centred cage with a retaining ring

• basic design bearings with cylindrical or
tapered bore
– taper 1:12 (designation sufix K)
– taper 1:30 (designation sufix K30) Fig. 10
• sealed bearings Sealed bearings
For sizes and variants not listed in the prod-
uct tables, contact SKF

Basic design

bearings

Depending on their series and size the fol- HNBR seals NBR seals
lowing basic design CARB toroidal roller
bearings are available as standard (ig. 9):

• bearings with a roller centred cage
• bearings with an inner ring centred cage
• full complement bearings with a retaining
ring

The load carrying capacity of full comple-
10 ment CARB bearings is considerably higher
than that of same-sized bearings with a
cage

844
