Design considerations

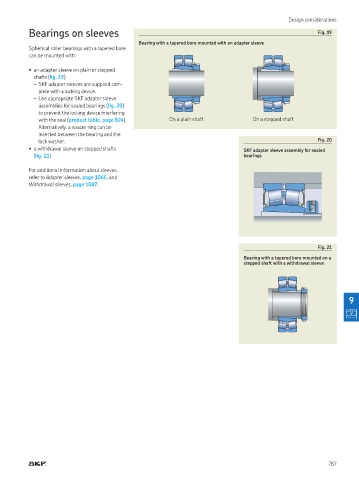

Bearings on sleeves Fig. 19
Bearing with a tapered bore mounted with an adapter sleeve
Spherical roller bearings with a tapered bore
can be mounted with:

• an adapter sleeve on plain or stepped
shafts (ig. 19):
– SKF adapter sleeves are supplied com-
plete with a locking device
– Use appropriate SKF adapter sleeve
assemblies for sealed bearings (ig. 20)
to prevent the locking device interfering
with the seal (product table, page 824) On a plain shaft On a stepped shaft
Alternatively, a spacer ring can be
inserted between the bearing and the
lock washer Fig. 20
• a withdrawal sleeve on stepped shafts SKF adapter sleeve assembly for sealed
(ig. 21) bearings

For additional information about sleeves,
refer to Adapter sleeves, page 1065, and
Withdrawal sleeves, page 1087

Fig. 21
Bearing with a tapered bore mounted on a
stepped shaft with a withdrawal sleeve

9

787
