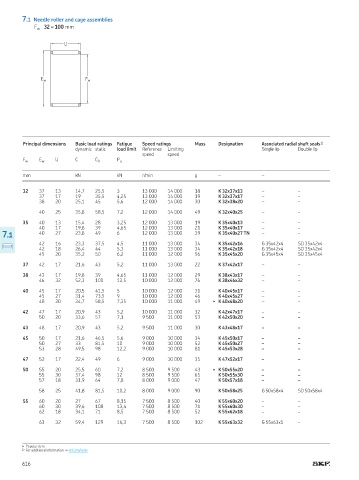

P. 618
7.1 Needle roller and cage assemblies
F 32 – 100 mm
w
U
E w F w
Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation Associated radial shaft seals 1)
dynamic static load limit Reference Limiting Single lip Double lip
speed speed
E U C C P
F w w 0 u
mm kN kN r/min g – –
32 37 13 14,7 25,5 3 13 000 14 000 18 K 32x37x13 – –
37 17 19 35,5 4,25 13 000 14 000 19 K 32x37x17 – –
38 20 25,1 45 5,6 12 000 14 000 30 K 32x38x20 – –
40 25 35,8 58,5 7,2 12 000 14 000 49 K 32x40x25 – –
35 40 13 15,4 28 3,25 12 000 13 000 19 K 35x40x13 – –
40 17 19,8 39 4,65 12 000 13 000 21 K 35x40x17 – –
7.1 40 27 23,8 49 6 12 000 13 000 39 K 35x40x27 TN – –
42 16 23,3 37,5 4,5 11 000 13 000 34 K 35x42x16 G 35x42x4 SD 35x42x4
42 18 26,4 44 5,3 11 000 13 000 34 K 35x42x18 G 35x42x4 SD 35x42x4
45 20 35,2 50 6,2 11 000 12 000 56 K 35x45x20 G 35x45x4 SD 35x45x4
37 42 17 21,6 43 5,2 11 000 13 000 22 K 37x42x17 – –
38 43 17 19,8 39 4,65 11 000 12 000 29 K 38x43x17 – –
46 32 52,3 100 12,5 10 000 12 000 76 K 38x46x32 – –
40 45 17 20,5 41,5 5 10 000 12 000 31 K 40x45x17 – –
45 27 31,4 73,5 9 10 000 12 000 46 K 40x45x27 – –
48 20 34,7 58,5 7,35 10 000 11 000 49 ▶ K 40x48x20 – –
42 47 17 20,9 43 5,2 10 000 11 000 32 K 42x47x17 – –
50 20 33,6 57 7,1 9 500 11 000 53 K 42x50x20 – –
43 48 17 20,9 43 5,2 9 500 11 000 30 K 43x48x17 – –
45 50 17 21,6 46,5 5,6 9 000 10 000 34 K 45x50x17 – –
50 27 33 81,5 10 9 000 10 000 52 K 45x50x27 – –
53 28 49,5 98 12,2 9 000 10 000 81 K 45x53x28 – –
47 52 17 22,4 49 6 9 000 10 000 35 K 47x52x17 – –
50 55 20 25,5 60 7,2 8 500 9 500 43 ▶ K 50x55x20 – –
55 30 37,4 98 12 8 500 9 500 65 K 50x55x30 – –
57 18 31,9 64 7,8 8 000 9 000 47 K 50x57x18 – –
58 25 41,8 81,5 10,2 8 000 9 000 90 K 50x58x25 G 50x58x4 SD 50x58x4
55 60 20 27 67 8,15 7 500 8 500 40 K 55x60x20 – –
60 30 39,6 108 13,4 7 500 8 500 71 K 55x60x30 – –
62 18 34,1 71 8,5 7 500 8 500 52 K 55x62x18 – –
63 32 59,4 129 16,3 7 500 8 500 102 K 55x63x32 G 55x63x5 –
▶ Popular item
1) For additional information → skf com/seals
