6 Cylindrical roller bearings

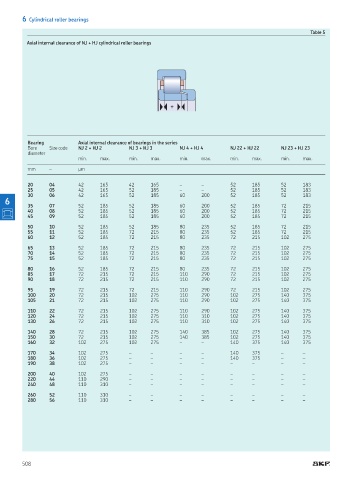

Table 5
Axial internal clearance of NJ + HJ cylindrical roller bearings

+

Bearing Axial internal clearance of bearings in the series
Bore Size code NJ 2 + HJ 2 NJ 3 + HJ 3 NJ 4 + HJ 4 NJ 22 + HJ 22 NJ 23 + HJ 23
diameter
min max min max min max min max min max
mm – µm

20 04 42 165 42 165 – – 52 185 52 183
25 05 42 165 52 185 – – 52 185 52 183
30 06 42 165 52 185 60 200 52 185 52 183
6
35 07 52 185 52 185 60 200 52 185 72 215
40 08 52 185 52 185 60 200 52 185 72 215
45 09 52 185 52 185 60 200 52 185 72 215
50 10 52 185 52 185 80 235 52 185 72 215
55 11 52 185 72 215 80 235 52 185 72 215
60 12 52 185 72 215 80 235 72 215 102 275
65 13 52 185 72 215 80 235 72 215 102 275
70 14 52 185 72 215 80 235 72 215 102 275
75 15 52 185 72 215 80 235 72 215 102 275
80 16 52 185 72 215 80 235 72 215 102 275
85 17 72 215 72 215 110 290 72 215 102 275
90 18 72 215 72 215 110 290 72 215 102 275
95 19 72 215 72 215 110 290 72 215 102 275
100 20 72 215 102 275 110 290 102 275 140 375
105 21 72 215 102 275 110 290 102 275 140 375
110 22 72 215 102 275 110 290 102 275 140 375
120 24 72 215 102 275 110 310 102 275 140 375
130 26 72 215 102 275 110 310 102 275 140 375
140 28 72 215 102 275 140 385 102 275 140 375
150 30 72 215 102 275 140 385 102 275 140 375
160 32 102 275 102 275 – – 140 375 140 375
170 34 102 275 – – – – 140 375 – –
180 36 102 275 – – – – 140 375 – –
190 38 102 275 – – – – – – – –
200 40 102 275 – – – – – – – –
220 44 110 290 – – – – – – – –
240 48 110 310 – – – – – – – –
260 52 110 310 – – – – – – – –
280 56 110 310 – – – – – – – –
