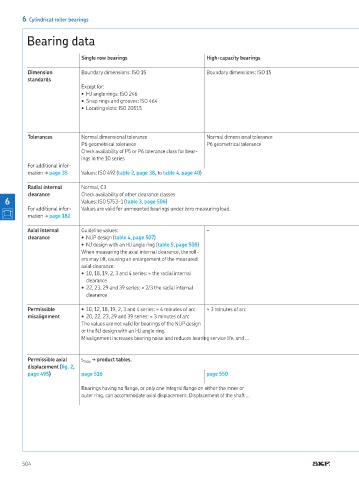

Bearing data

6 Cylindrical roller bearings

Bearing data

Single row bearings High-capacity bearings

Dimension Boundary dimensions: ISO 15 Boundary dimensions: ISO 15
standards
Except for:
• HJ angle rings: ISO 246
• Snap rings and grooves: ISO 464
• Locating slots: ISO 20515

Tolerances Normal dimensional tolerance Normal dimensional tolerance
P6 geometrical tolerance P6 geometrical tolerance
Check availability of P5 or P6 tolerance class for bear-
ings in the 10 series
For additional infor-
mation † page 35 Values: ISO 492 (table 2, page 38, to table 4, page 40)

Radial internal Normal, C3
clearance Check availability of other clearance classes
6 Values: ISO 5753-1 (table 3, page 506)
For additional infor- Values are valid for unmounted bearings under zero measuring load
mation † page 182

Axial internal Guideline values: –
clearance • NUP design (table 4, page 507)
• NJ design with an HJ angle ring (table 5, page 508)
When measuring the axial internal clearance, the roll-
ers may tilt, causing an enlargement of the measured
axial clearance:
• 10, 18, 19, 2, 3 and 4 series: ≈ the radial internal
clearance
• 22, 23, 29 and 39 series: ≈ 2/3 the radial internal
clearance

Permissible • 10, 12, 18, 19, 2, 3 and 4 series: ≈ 4 minutes of arc ≈ 3 minutes of arc
misalignment • 20, 22, 23, 29 and 39 series: ≈ 3 minutes of arc
The values are not valid for bearings of the NUP design
or the NJ design with an HJ angle ring
Misalignment increases bearing noise and reduces bearing service life, and …

Permissible axial s max † product tables,
displacement (ig. 2,
page 495) page 516 page 550

Bearings having no lange, or only one integral lange on either the inner or
outer ring, can accommodate axial displacement Displacement of the shaft …

504
