Bearing data

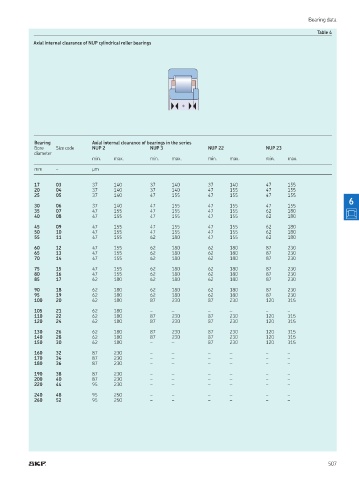

Table 4
Axial internal clearance of NUP cylindrical roller bearings

+

Bearing Axial internal clearance of bearings in the series
Bore Size code NUP 2 NUP 3 NUP 22 NUP 23
diameter
min max min max min max min max
mm – µm

17 03 37 140 37 140 37 140 47 155
20 04 37 140 37 140 47 155 47 155
25 05 37 140 47 155 47 155 47 155
6
30 06 37 140 47 155 47 155 47 155
35 07 47 155 47 155 47 155 62 180
40 08 47 155 47 155 47 155 62 180
45 09 47 155 47 155 47 155 62 180
50 10 47 155 47 155 47 155 62 180
55 11 47 155 62 180 47 155 62 180
60 12 47 155 62 180 62 180 87 230
65 13 47 155 62 180 62 180 87 230
70 14 47 155 62 180 62 180 87 230
75 15 47 155 62 180 62 180 87 230
80 16 47 155 62 180 62 180 87 230
85 17 62 180 62 180 62 180 87 230
90 18 62 180 62 180 62 180 87 230
95 19 62 180 62 180 62 180 87 230
100 20 62 180 87 230 87 230 120 315
105 21 62 180 – – – – – –
110 22 62 180 87 230 87 230 120 315
120 24 62 180 87 230 87 230 120 315
130 26 62 180 87 230 87 230 120 315
140 28 62 180 87 230 87 230 120 315
150 30 62 180 – – 87 230 120 315
160 32 87 230 – – – – – –
170 34 87 230 – – – – – –
180 36 87 230 – – – – – –
190 38 87 230 – – – – – –
200 40 87 230 – – – – – –
220 44 95 230 – – – – – –
240 48 95 250 – – – – – –
260 52 95 250 – – – – – –
