Designs and variants

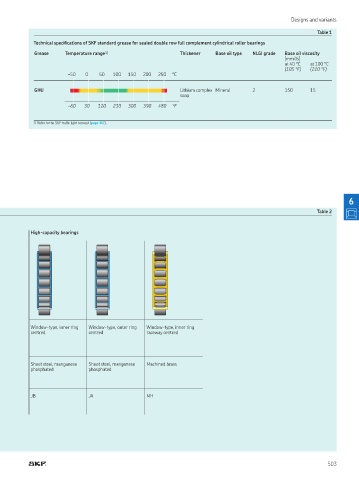

Table 1
Technical speciications of SKF standard grease for sealed double row full complement cylindrical roller bearings
Grease Temperature range 1) Thickener Base oil type NLGI grade Base oil viscosity
[mm 2 /s]
at 40 °C at 100 °C
(105 °F) (210 °F)
–50 0 50 100 150 200 250 °C

GHU Lithium complex Mineral 2 150 15
soap
–60 30 120 210 300 390 480 °F

1) Refer to the SKF trafic light concept (page 117)

6
Table 2

High-capacity bearings

Window-type, inner ring Window-type, outer ring Window-type, inner ring
centred centred raceway centred

Sheet steel, manganese Sheet steel, manganese Machined brass
phosphated phosphated

JB JA MH

503
