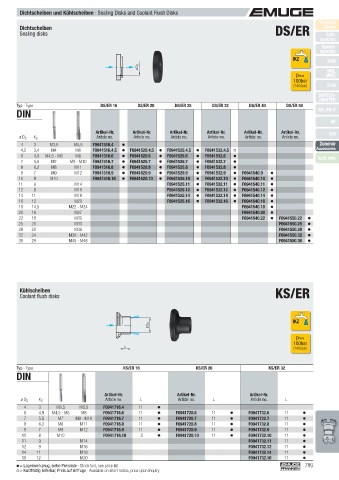

Dichtscheiben und Kühlscheiben · Sealing Disks and Coolant Flush Disks
Product
Dichtscheiben DS/ER Finder
Sealing disks Soft-
synchro
Speed-
synchro
IKZ KSN
ø D 2
MQL
pmax MMS
100bar
(1400psi) SFM
SWITCH-
MASTER
Typ · Type DS/ER 16 DS/ER 20 DS/ER 25 DS/ER 32 DS/ER 40 DS/ER 50
DIN GR, GR-S
HF
Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr. Artikel-Nr. EM
ø D 2 K 2 Article no. Article no. Article no. Article no. Article no. Article no.
4 3 M3,5 M5,5 F0941516.4 Zubehör
4,5 3,4 M4 M6 F0941516.4.5 F0941520.4.5 F0941525.4.5 F0941532.4.5 Accessories
6 4,9 M4,5 - M6 M8 F0941516.6 F0941520.6 F0941525.6 F0941532.6 Tech. Info
7 5,5 M7 M9 - M10 F0941516.7 F0941520.7 F0941525.7 F0941532.7
8 6,2 M8 M11 F0941516.8 F0941520.8 F0941525.8 F0941532.8
9 7 M9 M12 F0941516.9 F0941520.9 F0941525.9 F0941532.9 F0941540.9
10 8 M10 F0941516.10 F0941520.10 F0941525.10 F0941532.10 F0941540.10
11 9 M14 F0941525.11 F0941532.11 F0941540.11
12 9 M16 F0941525.12 F0941532.12 F0941540.12
14 11 M18 F0941525.14 F0941532.14 F0941540.14
16 12 M20 F0941525.16 F0941532.16 F0941540.16
18 14,5 M22 - M24 F0941540.18
20 16 M27 F0941540.20
22 18 M30 F0941540.22 F0941550.22
25 20 M33 F0941550.25
28 22 M36 F0941550.28
32 24 M39 - M42 F0941550.32
36 29 M45 - M48 F0941550.36

Kühlscheiben KS/ER
Coolant fl ush disks

IKZ
ø D 2

pmax
100bar
L (1400psi)

Typ · Type KS/ER 16 KS/ER 20 KS/ER 32
DIN

Artikel-Nr. Artikel-Nr. Artikel-Nr.
ø D 2 K 2 Article no. L Article no. L Article no. L
4 3 M3,5 M5,5 F0941716.4 11
6 4,9 M4,5 - M6 M8 F0941716.6 11 F0941720.6 11 F0941732.6 11
7 5,5 M7 M9 - M10 F0941716.7 11 F0941720.7 11 F0941732.7 11
8 6,2 M8 M11 F0941716.8 11 F0941720.8 11 F0941732.8 11
9 7 M9 M12 F0941716.9 11 F0941720.9 11 F0941732.9 11
10 8 M10 F0941716.10 2 F0941720.10 11 F0941732.10 11
11 9 M14 F0941732.11 11
12 9 M16 F0941732.12 11
14 11 M18 F0941732.14 11
16 12 M20 F0941732.16 11
= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 789
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
