Split pillow blocks SAF and SAW series

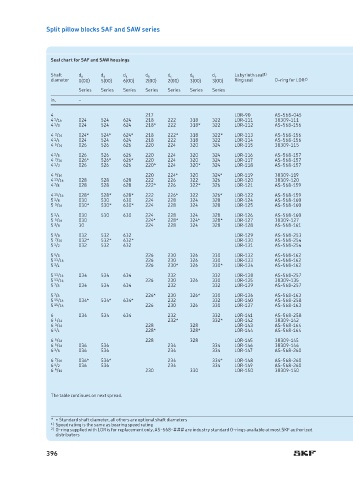

Seal chart for SAF and SAW housings

Shaft d a d a d a d b d c d b d c Labyrinth seal 1)
diameter 0(00) 5(00) 6(00) 2(00) 2(00) 3(00) 3(00) Ring seal O-ring for LOR 2)
Series Series Series Series Series Series Series
in. –
4 217 LOR-90 AS-568-045
4 1 /16 024 524 624 218 222 318 322 LOR-111 38309-111
4 1 /8 024 524 624 218* 222 318* 322 LOR-112 AS-568-156
4 3 /16 024* 524* 624* 218 222* 318 322* LOR-113 AS-568-156
4 1 /4 024 524 624 218 222 318 322 LOR-114 AS-568-156
4 5 /16 026 526 626 220 224 320 324 LOR-115 38309-115
4 3 /8 026 526 626 220 224 320 324 LOR-116 AS-568-157
4 7 /16 026* 526* 626* 220 224 320 324 LOR-117 AS-568-157
4 1 /2 026 526 626 220* 224 320* 324 LOR-118 AS-568-157
4 9 /16 220 224* 320 324* LOR-119 38309-119
4 13 /16 028 528 628 222 226 322 326 LOR-120 38309-120
4 7 /8 028 528 628 222* 226 322* 326 LOR-121 AS-568-159
4 15 /16 028* 528* 628* 222 226* 322 326* LOR-122 AS-568-159
5 1 /8 030 530 630 224 228 324 328 LOR-124 AS-568-160
5 3 /16 030* 530* 630* 224 228 324 328 LOR-125 AS-568-160
5 1 /4 030 530 630 224 228 324 328 LOR-126 AS-568-160
5 5 /16 030 224* 228* 324* 328* LOR-127 38309-127
5 3 /8 30 224 228 324 328 LOR-128 AS-568-161
5 3 /8 032 532 632 LOR-129 AS-568-253
5 7 /16 032* 532* 632* LOR-130 AS-568-254
5 1 /2 032 532 632 LOR-131 AS-568-254
5 5 /8 226 230 326 330 LOR-132 AS-568-162
5 11 /16 226 230 326 330 LOR-133 AS-568-162
5 3 /4 226 230* 326 330* LOR-134 AS-568-162
5 13 /16 034 534 634 232 332 LOR-138 AS-568-257
5 13 /16 226 230 326 330 LOR-135 38309-135
5 7 /8 034 534 634 232 332 LOR-139 AS-568-257
5 7 /8 226* 230 326* 330 LOR-136 AS-568-163
5 15 /16 034* 534* 634* 232 332 LOR-140 AS-568-258
5 15 /16 226 230 326 330 LOR-137 AS-568-163
6 034 534 634 232 332 LOR-141 AS-568-258
6 1 /16 232* 332* LOR-142 38309-142
6 3 /16 228 328 LOR-143 AS-568-164
6 1 /4 228* 328* LOR-144 AS-568-164
6 5 /16 228 328 LOR-145 38309-145
6 5 /16 036 536 234 334 LOR-146 38309-146
6 3 /8 036 536 234 334 LOR-147 AS-568-260
6 7 /16 036* 536* 234 334* LOR-148 AS-568-260
6 1 /2 036 536 234 334 LOR-149 AS-568-260
6 9 /16 230 330 LOR-150 38309-150

The table continues on next spread.

* = Standard shaft diameter, all others are optional shaft diameters
1) Speed rating is the same as bearing speed rating
2) O-ring supplied with LOR is for replacement only, AS-568-### are industry standard O-rings available at most SKF authorized
distributors
