Split pillow blocks SAF and SAW series

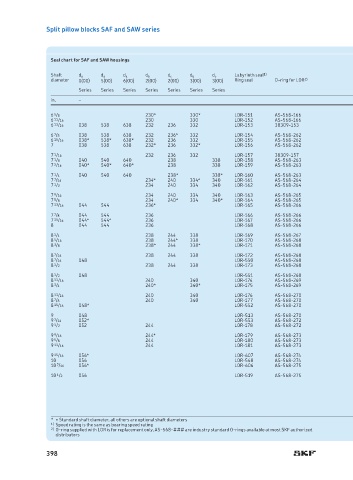

Seal chart for SAF and SAW housings

Shaft d a d a d a d b d c d b d c Labyrinth seal 1)
diameter 0(00) 5(00) 6(00) 2(00) 2(00) 3(00) 3(00) Ring seal O-ring for LOR 2)
Series Series Series Series Series Series Series
in. –
6 5 /8 230* 330* LOR-151 AS-568-166
6 11 /16 230 330 LOR-152 AS-568-166
6 13 /16 038 538 638 232 236 332 LOR-153 38309-153
6 7 /8 038 538 638 232 236* 332 LOR-154 AS-568-262
6 15 /16 038* 538* 638* 232 236 332 LOR-155 AS-568-262
7 038 538 638 232* 236 332* LOR-156 AS-568-262
7 1 /16 232 236 332 LOR-157 38309-157
7 1 /8 040 540 640 238 338 LOR-158 AS-568-263
7 3 /16 040* 540* 640* 238 338 LOR-159 AS-568-263
7 1 /4 040 540 640 238* 338* LOR-160 AS-568-263
7 7 /16 234* 240 334* 340 LOR-161 AS-568-264
7 1 /2 234 240 334 340 LOR-162 AS-568-264
7 9 /16 234 240 334 340 LOR-163 AS-568-265
7 5 /8 234 240* 334 340* LOR-164 AS-568-265
7 13 /16 044 544 236* LOR-165 AS-568-266
7 7 /8 044 544 236 LOR-166 AS-568-266
7 15 /16 044* 544* 236 LOR-167 AS-568-266
8 044 544 236 LOR-168 AS-568-266
8 1 /4 238 244 338 LOR-169 AS-568-267
8 5 /16 238 244* 338 LOR-170 AS-568-268
8 3 /8 238* 244 338* LOR-171 AS-568-268
8 7 /16 238 244 338 LOR-172 AS-568-268
8 7 /16 048 LOR-550 AS-568-268
8 1 /2 238 244 338 LOR-173 AS-568-268
8 1 /2 048 LOR-551 AS-568-268
8 11 /16 240 340 LOR-174 AS-568-269
8 3 /4 240* 340* LOR-175 AS-568-269
8 13 /16 240 340 LOR-176 AS-568-270
8 7 /8 240 340 LOR-177 AS-568-270
8 15 /16 048* LOR-552 AS-568-270
9 048 LOR-513 AS-568-270
9 7 /16 052* LOR-553 AS-568-272
9 1 /2 052 244 LOR-178 AS-568-272
9 9 /16 244* LOR-179 AS-568-273
9 5 /8 244 LOR-180 AS-568-273
9 11 /16 244 LOR-181 AS-568-273
9 15 /16 056* LOR-607 AS-568-274
10 056 LOR-568 AS-568-274
10 7 /16 056* LOR-606 AS-568-275
10 1 /2 056 LOR-519 AS-568-275

* = Standard shaft diameter, all others are optional shaft diameters
1) Speed rating is the same as bearing speed rating
2) O-ring supplied with LOR is for replacement only, AS-568-### are industry standard O-rings available at most SKF authorized
distributors
