Sealing solutions

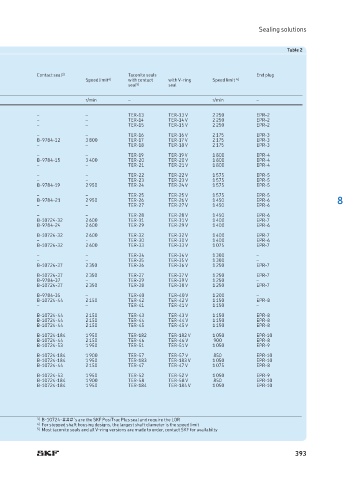

Table 2

Contact seal 3) Taconite seals End plug
Speed limit 4) with contact with V-ring Speed limit 4)
seal 5) seal
r/min – r/min –
– – TER-13 TER-13 V 2 250 EPR-2
– – TER-14 TER-14 V 2 250 EPR-2
– – TER-15 TER-15 V 2 250 EPR-2
– – TER-16 TER-16 V 2 175 EPR-3
B-9784-12 3 800 TER-17 TER-17 V 2 175 EPR-3
– – TER-18 TER-18 V 2 175 EPR-3
– – TER-19 TER-19 V 1 800 EPR-4
B-9784-15 3 400 TER-20 TER-20 V 1 800 EPR-4
– – TER-21 TER-21 V 1 800 EPR-4
– – TER-22 TER-22 V 1 575 EPR-5
– – TER-23 TER-23 V 1 575 EPR-5
B-9784-19 2 950 TER-24 TER-24 V 1 575 EPR-5
– – TER-25 TER-25 V 1 575 EPR-5
B-9784-21 2 950 TER-26 TER-26 V 1 450 EPR-6 8
– – TER-27 TER-27 V 1 450 EPR-6
– – TER-28 TER-28 V 1 450 EPR-6
B-10724-32 2 600 TER-31 TER-31 V 1 400 EPR-7
B-9784-24 2 600 TER-29 TER-29 V 1 400 EPR-6
B-10724-32 2 600 TER-32 TER-32 V 1 400 EPR-7
– - TER-30 TER-30 V 1 400 EPR-6
B-10724-32 2 600 TER-33 TER-33 V 1 075 EPR-7
– – TER-34 TER-34 V 1 300 –
– – TER-35 TER-35 V 1 300 –
B-10724-37 2 350 TER-36 TER-36 V 1 250 EPR-7
B-10724-37 2 350 TER-37 TER-37 V 1 250 EPR-7
B-9784-37 – TER-39 TER-39 V 1 250 –
B-10724-37 2 350 TER-38 TER-38 V 1 250 EPR-7
B-9784-35 – TER-40 TER-40 V 1 200 –
B-10724-44 2 150 TER-42 TER-42 V 1 150 EPR-8
– – TER-41 TER-41 V 1 150 –
B-10724-44 2 150 TER-43 TER-43 V 1 150 EPR-8
B-10724-44 2 150 TER-44 TER-44 V 1 150 EPR-8
B-10724-44 2 150 TER-45 TER-45 V 1 150 EPR-8
B-10724-184 1 950 TER-182 TER-182 V 1 050 EPR-10
B-10724-44 2 150 TER-46 TER-46 V 900 EPR-8
B-10724-53 1 950 TER-51 TER-51 V 1 050 EPR-9
B-10724-184 1 900 TER-57 TER-57 V 850 EPR-10
B-10724-184 1 950 TER-183 TER-183 V 1 050 EPR-10
B-10724-44 2 150 TER-47 TER-47 V 1 075 EPR-8
B-10724-53 1 950 TER-52 TER-52 V 1 050 EPR-9
B-10724-184 1 900 TER-58 TER-58 V 850 EPR-10
B-10724-184 1 950 TER-184 TER-184 V 1 050 EPR-10

3) B-10724-### ‘s are the SKF PosiTrac Plus seal and require the LOR
4) For stepped shaft housing designs, the largest shaft diameter is the speed limit
5) Most taconite seals and all V-ring versions are made to order, contact SKF for availabilty
