Split pillow blocks SAF and SAW series

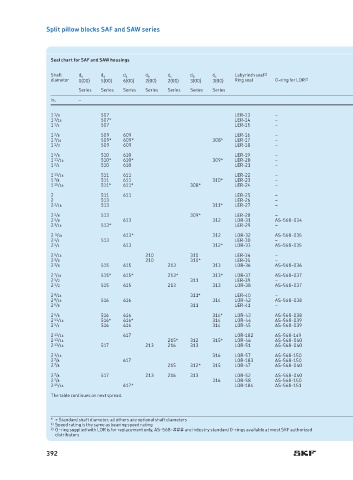

Seal chart for SAF and SAW housings

Shaft d a d a d a d b d c d b d c Labyrinth seal 1)
diameter 0(00) 5(00) 6(00) 2(00) 2(00) 3(00) 3(00) Ring seal O-ring for LOR 2)
Series Series Series Series Series Series Series
in. –
1 1 /8 507 LER-13 –
1 3 /16 507* LER-14 –
1 1 /4 507 LER-15 –
1 3 /8 509 609 LER-16 –
1 7 /16 509* 609* 308* LER-17 –
1 1 /2 509 609 LER-18 –
1 5 /8 510 610 LER-19 –
1 11 /16 510* 610* 309* LER-20 –
1 3 /4 510 610 LER-21 –
1 13 /16 511 611 LER-22 –
1 7 /8 511 611 310* LER-23 –
1 15 /16 511* 611* 308* LER-24 –
2 511 611 LER-25 –
2 513 LER-26 –
2 1 /16 513 311* LER-27 –
2 1 /8 513 309* LER-28 –
2 1 /8 613 312 LOR-31 AS-568-034
2 3 /16 513* LER-29 –
2 3 /16 613* 312 LOR-32 AS-568-035
2 1 /4 513 LER-30 –
2 1 /4 613 312* LOR-33 AS-568-035
2 5 /16 210 310 LER-34 –
2 3 /8 210 310* LER-35 –
2 3 /8 515 615 213 313 LOR-36 AS-568-036
2 7 /16 515* 615* 213* 313* LOR-37 AS-568-037
2 1 /2 311 LER-39 –
2 1 /2 515 615 213 313 LOR-38 AS-568-037
2 9 /16 311* LER-40 –
2 9 /16 516 616 314 LOR-42 AS-568-038
2 5 /8 311 LER-41 –
2 5 /8 516 616 314* LOR-43 AS-568-038
2 11 /16 516* 616* 314 LOR-44 AS-568-039
2 3 /4 516 616 314 LOR-45 AS-568-039
2 13 /16 617 LOR-182 AS-568-149
2 13 /16 215* 312 315* LOR-46 AS-568-040
2 13 /16 517 213 216 313 LOR-51 AS-568-040
2 3 /16 316 LOR-57 AS-568-150
2 7 /8 617 LOR-183 AS-568-150
2 7 /8 215 312* 315 LOR-47 AS-568-040
2 7 /8 517 213 216 313 LOR-52 AS-568-040
2 7 /8 316 LOR-58 AS-568-150
2 15 /16 617* LOR-184 AS-568-151
The table continues on next spread.

* = Standard shaft diameter, all others are optional shaft diameters
1) Speed rating is the same as bearing speed rating
2) O-ring supplied with LOR is for replacement only, AS-568-### are industry standard O-rings available at most SKF authorized
distributors
