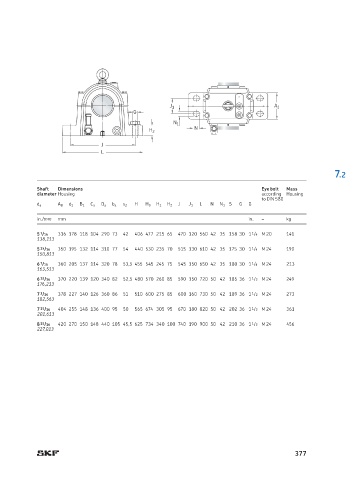

Page 381 - SKF-bearing-housings

J 1 A 1
G
N 1
N
H 2
J
L

7.2
Shaft Dimensions Eye bolt Mass
diameter Housing according Housing
to DIN 580
H J L N N 1 S G G
d a A B d 1 B 1 C a D a b a s 2 H 0 H 1 H 2 J 1
in./mm mm in. – kg

5 7 /16 316 178 118 104 290 73 42 406 477 215 65 470 120 560 42 35 158 30 1 1 /4 M 20 141
138,113
5 15 /16 350 195 132 114 310 77 54 440 530 235 70 515 130 610 42 35 175 30 1 1 /4 M 24 190
150,813
6 7 /16 360 205 137 114 320 78 53,5 455 545 245 75 545 150 650 42 35 180 30 1 1 /4 M 24 213
163,513
6 15 /16 370 220 139 120 340 82 52,5 480 570 260 85 590 150 720 50 42 185 36 1 1 /2 M 24 249
176,213
7 3 /16 378 227 140 126 360 86 51 510 600 275 85 600 160 730 50 42 189 36 1 1 /2 M 24 273
182,563
7 15 /16 404 255 148 136 400 95 50 565 674 305 95 670 180 820 50 42 202 36 1 1 /2 M 24 361
201,613
8 15 /16 420 270 150 148 440 105 45,5 625 734 340 100 740 190 900 50 42 210 36 1 1 /2 M 24 456
227,013

377
